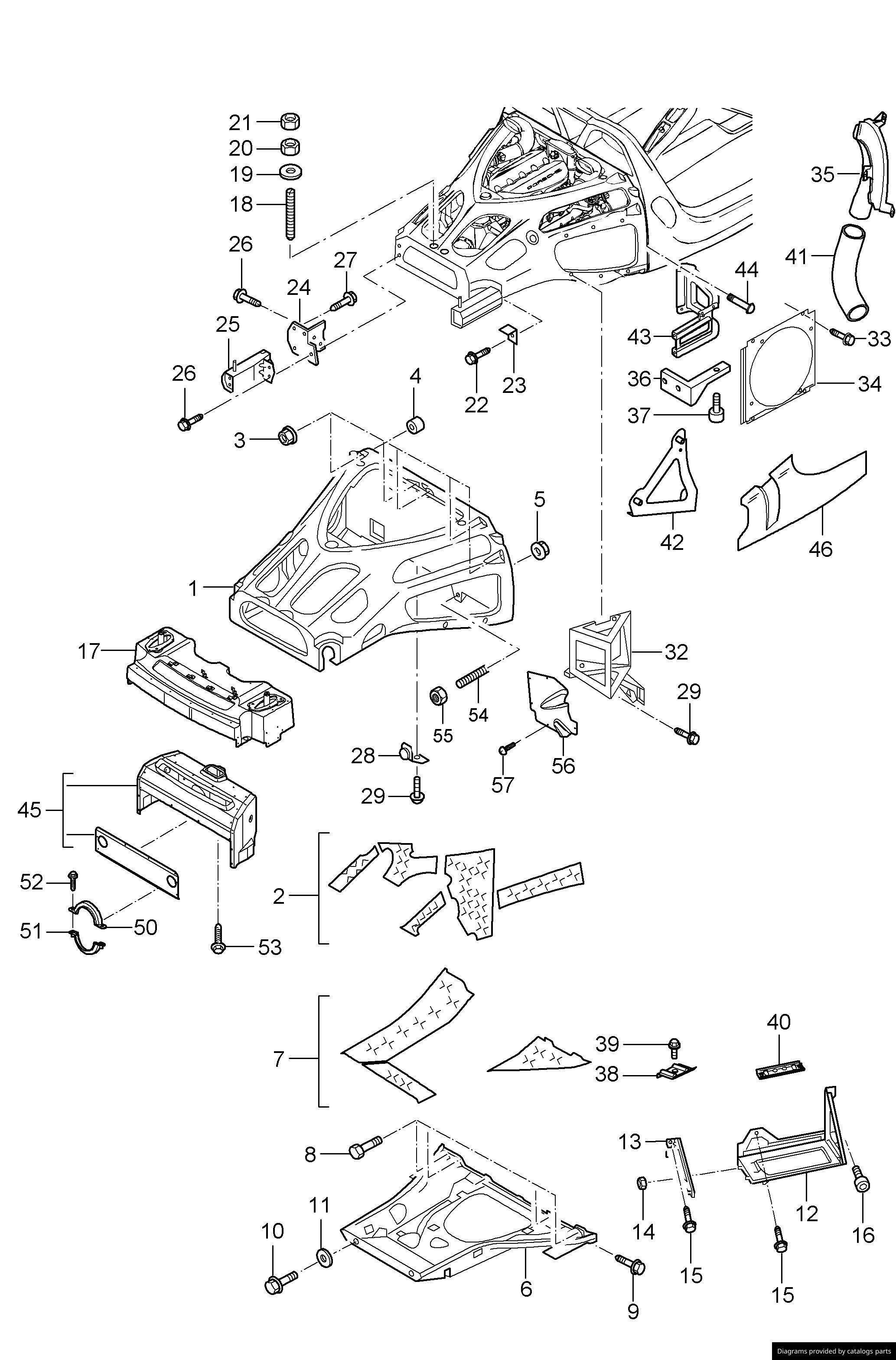

No | Part code | Price | Title | Note | Req. quant. | Model |
Rear end | ||||||
1 | 98050197100 | Assembly carrier Upper part | 1 | |||
1 | PCG50197100 | From £165,045.34 | Assembly carrier (complete) Upper part and Lower part | punched | 1 | |
1 | PCG50197101 | Assembly carrier (complete) Upper part and Lower part | Non-perforated | 1 | ||
2 | 98050171101 | From £1,870.39 | Heat insulation Upper part also use: POS.46 | 1 | ||
3 | 999084445A2 | Hexagon nut M 12X1,5 | 5 | |||
4 | 9990950400A | dowel sleeve M 6X12,5X18,5 Discontinued part | 2 | |||
4 | 99909504001 | From £22.79 | dowel sleeve M 6X12,5X18,5 | 2 | ||
5 | 900380008A2 | From £2.41 | Hexagon nut M 10 | 2 | ||
6 | 98050118101 | Assembly carrier Lower part | 1 | |||
7 | 98050170101 | From £97.50 | Heat insulation Lower part also use: | 1 | ||
1 | PCG50197100 | From £165,045.34 | Assembly carrier (complete) Upper part and Lower part | punched | 1 | |
1 | PCG50197101 | Assembly carrier (complete) Upper part and Lower part | Non-perforated | 1 | ||
99991565040 | adhesive | X | ||||
8 | 900378256A2 | From £8.44 | Hexagon bolt M 12X1,5X65 | 4 | ||
9 | 900378227A2 | Hexagon bolt M 8X28 | 4 | |||
10 | 900378177A2 | Hexagon bolt M 6X30 | 5 | |||
11 | N 01166612 | From £1.13 | Washer | 5 | ||
12 | 98050460101 | From £465.38 | Retainer for battery | 1 | ||
13 | 98050460300 | From £152.68 | Retainer for battery | 1 | ||
14 | 900380005A2 | From £1.43 | Hexagon nut M 8 | 2 | ||
15 | 900378030A2 | From £2.41 | Hexagon bolt M 6X20 | 5 | ||
16 | 90038727709 | From £22.15 | Socket head bolt M 8X35 | 1 | ||
17 | 98050535103 | From £9,673.18 | Cross member | 1 | ||
18 | 90022803100 | From £7.74 | threaded pin M 8X70 | 2 | ||
19 | 90002507400 | From £6.11 | Washer M 8 | 2 | ||
20 | 900380005A2 | From £1.43 | Hexagon nut M 8 | 2 | ||
21 | 99908412100 | From £5.86 | Hexagon nut | 10 | ||
21 | 90003404600 | From £6.03 | Hexagon nut M8 | 10 | ||
22 | 999073258A2 | From £6.03 | fillister hd. bolt M 8X20 | 4 | ||
23 | 98050555100 | From £52.15 | Stop bracket | 2 | ||
24 | 98050141301 | From £1,796.97 | Console | 1 | ||
24 | 98050141401 | From £1,796.97 | Console | 1 | ||
25 | 98050141101 | From £2,777.06 | Carrier | rear | 1 | |
25 | 98050141201 | From £2,777.06 | Carrier | rear | 1 | |
26 | 900378227A2 | Hexagon bolt M 8X28 | 18 | |||
27 | 90037807409 | Hexagon bolt M 8X16 | 8 | |||
28 | 98050160500 | From £394.58 | Stop pulley | 1 | ||
29 | 999015026A2 | fillister hd. bolt M 6X16 | 1 | |||
32 | 98050414100 | From £1,882.04 | Bracket Gear oil cooler | 1 | ||
32 | 98050454302 | Bracket Air conditioning cooler Discontinued part | 1 | |||
32 | 98050454303 | From £2,281.09 | Bracket Air conditioning cooler | 1 | ||
33 | 999073252A2 | From £6.97 | fillister hd. bolt M 6X20 | 4 | ||
34 | 98050424101 | From £327.98 | Bracket Fan Gear oil cooler | 1 | ||
34 | 98050435100 | From £315.33 | Bracket Fan Air conditioning cooler | 1 | ||
98050474300 | From £192.58 | Cover Condenser | 1 | |||
35 | 98050471900 | From £258.76 | Air guide Gear oil cooler | 1 | ||
36 | 98050464102 | From £118.13 | Radiator cowl for fan wheel | 2 | ||
37 | 90038727709 | From £22.15 | Socket head bolt M 8X35 | 1 | ||
38 | 99661120900 | Rail | 1 | |||
39 | 90037801709 | Hexagon bolt M 8X20 | 1 | |||
40 | 98050465300 | From £76.24 | Adapter Battery | 1 | ||
99921702002 | Hexagon bolt M 6X10 Discontinued part | 1 | ||||
99921702001 | From £2.50 | Hexagon bolt M 6X10 | 1 | |||
41 | 98050472100 | From £204.24 | Air guide | 1 | ||
42 | 98050454501 | From £949.89 | Bracket Gear oil cooler | 1 | ||
43 | 98050470900 | From £636.03 | Retainer for pump LECKDIAGNOSEPUMPE | 1 | ||
44 | 999015026A2 | fillister hd. bolt M 6X16 | 4 | |||
98050160100 | From £223.05 | Sound absorber | 1 | |||
45 | 98050420102 | Heat insulation Rear silencer D - MJ 2004>> - MJ 2004 | 1 | |||
45 | 98050420103 | From £3,531.71 | Heat insulation Rear silencer D - MJ 2005>> | 1 | ||
46 | 98050171300 | From £59.89 | Heat insulation Assembly carrier Upper part | left | 1 | |
46 | 98050171400 | From £59.89 | Heat insulation Assembly carrier Upper part | right | 1 | |
98050572102 | From £486.40 | Heat insulation Cross member | rear | 1 | ||
98050570500 | From £489.78 | Heat insulation Cross member | rear | 1 | ||
50 | 98050465500 | From £109.98 | Clamp | upper | 2 | |
51 | 98050465700 | From £109.98 | Clamp | lower | 2 | |
52 | 99901502609 | From £0.95 | fillister hd. bolt M6 X 16 | X | ||
53 | 999015025A2 | From £1.13 | Oval-head screw M6 X 12 | 6 | ||
54 | 999218115A2 | From £4.17 | Threaded pin M10 x 40 | 2 | ||
55 | 900380008A2 | From £2.41 | Hexagon nut M10 | 2 |
