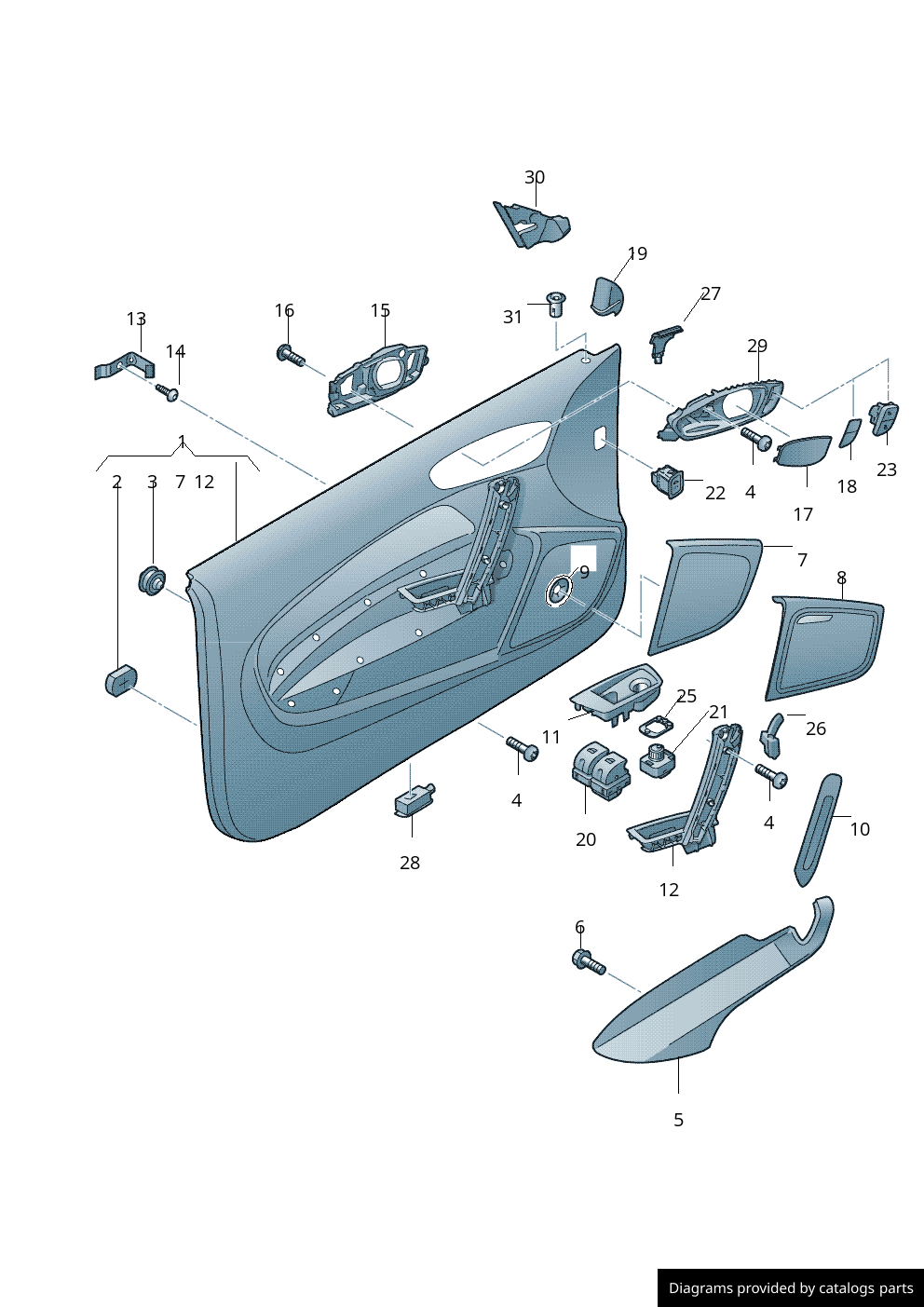

No | Part code | Price | Title | Note | Req. quant. | Model |
Door panel trim (plastic) Rework if necessary | front 4-door | PR:N0D,N0L, N2T,N0G | ||||
1 | 8X4867103 | door panel additionally to be used items: Associated item/items to be used as necessary: | left 5 8 | 1 | ||
8X4867103 KXT | From £290.40 | Soul/steel grey | -NA,YX | |||
8X4867103 XID | From £290.40 | soul (black)/garnet red | -YV | |||
8X4867103 24A | From £361.71 | soul (black) | -NB,NC,ND,YI, YM,YO,YS | |||
1 | 8X4867104 | door panel additionally to be used items: Associated item/items to be used as necessary: | right 5 8 | 1 | ||
8X4867104 KXT | From £290.40 | Soul/steel grey | -NA,YX | |||
8X4867104 XID | From £290.40 | soul (black)/garnet red | -YV | |||
8X4867104 24A | From £361.71 | soul (black) | -NB,NC,ND,YI, YM,YO,YS | |||
Door trim (leatherette) Rework if necessary | front 4-door | PR:N2R,N3M, N3Q,N5W,N0B, N7V,N5L | ||||
1 | 8X4867103C | door panel additionally to be used items: Associated item/items to be used as necessary: | left 5 8 | 1 | ||
8X4867103C KXT | From £317.68 | Soul/steel grey | -LO | |||
8X4867103C XID | From £317.68 | soul (black)/garnet red | -YV | |||
8X4867103C 24A | From £386.87 | soul (black) | -AJ,LF,OY,QF, SL,SN,YO,YS | |||
1 | 8X4867104C | door panel additionally to be used items: Associated item/items to be used as necessary: | right 5 8 | 1 | ||
8X4867104C KXT | From £317.68 | Soul/steel grey | -LO | |||
8X4867104C XID | From £317.68 | soul (black)/garnet red | -YV | |||
8X4867104C 24A | From £386.87 | soul (black) | -AJ,LF,OY,QF, SL,SN,YO,YS | |||
Door trim (Alcantara) Rework if necessary | front 4-door | PR:N7K,N7R | ||||
1 | 8X4867103D | Door trim (Alcantara) additionally to be used items: Associated item/items to be used as necessary: | left | 1 | ||
8X4867103D 24A | From £426.70 | soul (black) | -DB,QF,UK,YS | |||
1 | 8X4867104D | Door trim (Alcantara) additionally to be used items: Associated item/items to be used as necessary: | right | 1 | ||
8X4867104D 24A | From £426.70 | soul (black) | -DB,QF,UK,YS | |||
Individual parts | front 4-door | |||||
2 | 8K0863625 | From £1.30 | Seal | 4 | ||
3 | 7L6868243 | From £0.64 | Clip | 16 | ||
4 | N 10776001 | From £0.32 | Hexagon socket head collared bolt, thread forming | M5X18 | 8 | |
5 | 8X4867173 | Armrest see workshop manual | left | 1 | PR:7HA+6F0 | |
8X4867173 AI3 | From £68.15 | garnetred | -YV | |||
8X4867173 EF1 | From £68.15 | steel grey | -NA,YI,YX | |||
8X4867173 LM2 | From £68.15 | Laser blue | -YO | |||
8X4867173 24A | From £68.15 | soul (black) | -DB,LF,NB,NC, ND,OY,QF,SL, UK,YM,YS | |||
5 | 8X4867173A | armrest (leatherette) see workshop manual | left | 1 | PR:7HB,7HC | |
8X4867173A GX6 | From £120.57 | steel grey | -LO,NA,YI,YX | |||
8X4867173A LJ3 | From £120.57 | Laser blue | -YO | |||
8X4867173A XIA | From £120.57 | garnetred | -YV | |||
8X4867173A BOU | From £120.57 | Soul (black)/anthracite | -AJ,DB,NB,QF, SL,SN,UK,YM, YS | |||
5 | 8X4867173A | armrest (leatherette) see workshop manual | left | 1 | PR:7HA+6F1 | |
8X4867173A BOU | From £120.57 | Soul (black)/anthracite | -QF,SL | |||
5 | 8XG867173A | armrest (leather) | 1 | PR:7HF | ||
8XG867173A DSB | From £241.13 | Steel grey/express red | -LO | |||
8XG867173A EAN | From £241.13 | Soul (black)/yellow | -SN | |||
8XG867173A ERU | From £241.13 | Soul (black)/utopia blue | -LF | |||
8XG867173A NOH | From £241.13 | soul (black)/silver-dark | ||||
8XG867173A GJD | From £241.13 | Soul (black)/green | -OY | |||
5 | 8X4867174 | Armrest see workshop manual | right | 1 | PR:7HA+6F0 | |
8X4867174 AI3 | From £68.15 | garnetred | -YV | |||
8X4867174 EF1 | From £68.15 | steel grey | -NA,YI,YX | |||
8X4867174 LM2 | From £68.15 | Laser blue | -YO | |||
8X4867174 24A | From £68.15 | soul (black) | -DB,LF,NB,NC, ND,OY,QF,SL, UK,YM,YS | |||
5 | 8X4867174A | armrest (leatherette) see workshop manual | right | 1 | PR:7HB,7HC | |
8X4867174A GX6 | From £120.57 | steel grey | -LO,NA,YI,YX | |||
8X4867174A LJ3 | From £120.57 | Laser blue | -YO | |||
8X4867174A XIA | From £120.57 | garnetred | -YV | |||
8X4867174A BOU | From £120.57 | Soul (black)/anthracite | -AJ,DB,NB,QF, SL,SN,UK,YM, YS | |||
5 | 8X4867174A | armrest (leatherette) see workshop manual | right | 1 | PR:7HA+6F1 | |
8X4867174A BOU | From £120.57 | Soul (black)/anthracite | -QF,SL | |||
5 | 8XG867174A | armrest (leather) | 1 | PR:7HF | ||
8XG867174A DSB | From £241.13 | Steel grey/express red | -LO | |||
8XG867174A EAN | From £241.13 | Soul (black)/yellow | -SN | |||
8XG867174A ERU | From £241.13 | Soul (black)/utopia blue | -LF | |||
8XG867174A NOH | From £241.13 | soul (black)/silver-dark | ||||
8XG867174A GJD | From £241.13 | Soul (black)/green | -OY | |||
6 | N 90840103 | From £0.28 | Hex socket oval head collared | 4X14 | 18 | |
7 | 8X0035405 | Loudspeaker trim see workshop manual | left front | 1 | PR:8RE,8RX, 9VD | |
8X0035405 DK1 | From £16.01 | steel grey | -LO,NA,YX | |||
8X0035405 EA5 | From £16.01 | garnetred | -YV | |||
8X0035405 4PK | From £16.01 | soul (black) | -AJ,DB,LF,NB, NC,ND,OY,QF, SL,SN,UK,YI, YM,YO,YS | |||
7 | 8X0035406 | Loudspeaker trim see workshop manual | right front | 1 | PR:8RE,8RX, 9VD | |
8X0035406 DK1 | From £16.01 | steel grey | -LO,NA,YX | |||
8X0035406 EA5 | From £16.01 | garnetred | -YV | |||
8X0035406 4PK | From £16.01 | soul (black) | -AJ,DB,LF,NB, NC,ND,OY,QF, SL,SN,UK,YI, YM,YO,YS | |||
8 | 8X0035405B | Loudspeaker trim see workshop manual | left front | 1 | PR:9VK | |
8X0035405B DK1 | From £105.88 | steel grey | -LO,NA,YX | |||
8X0035405B EA5 | From £105.88 | garnetred | -YV | |||
8X0035405B 4PK | From £105.88 | soul (black) | -AJ,DB,LF,NB, NC,ND,OY,QF, SL,SN,UK,YI, YM,YO,YS | |||
8 | 8X0035406B | Loudspeaker trim see workshop manual | right front | 1 | PR:9VK | |
8X0035406B DK1 | From £105.88 | steel grey | -LO,NA,YX | |||
8X0035406B EA5 | From £105.88 | garnetred | -YV | |||
8X0035406B 4PK | From £105.88 | soul (black) | -AJ,DB,LF,NB, NC,ND,OY,QF, SL,SN,UK,YI, YM,YO,YS | |||
9 | N 90657502 | From £0.14 | Clamping washer | 5X11,75 | 18 | |
9 | 8X0867189 | From £0.17 | Spring clip | rightangled | 6 | |
10 | 8X0867171 | Trim for pull handle | left | 1 | PR:GS0 | |
8X0867171 6PS | From £10.48 | soul (black) | ||||
10 | 8X0867171A | Trim for pull handle | left | 1 | PR:GS1 | |
8X0867171A 6PS | From £26.21 | soul (black) | alu-look | |||
10 | 8X0867172 | Trim for pull handle | right | 1 | PR:GS0 | |
8X0867172 6PS | From £10.48 | soul (black) | ||||
10 | 8X0867172A | Trim for pull handle | right | 1 | PR:GS1 | |
8X0867172A 6PS | From £26.21 | soul (black) | alu-look | |||
11 | 8X4959521A | Switch mounting | left lhd | 1 | PR:6XC,6XD | |
8X4959521A 6PS | From £22.92 | soul (black) | ||||
11 | 8X4959521B | Switch mounting | left lhd | 1 | PR:6XE | |
8X4959521B 6PS | From £22.92 | soul (black) | ||||
11 | 8X4959521C | Switch mounting | left rhd | 1 | ||
8X4959521C 6PS | From £22.92 | soul (black) | ||||
11 | 8X4959522A | Switch mounting | right rhd | 1 | PR:6XC,6XD | |
8X4959522A 6PS | From £22.92 | soul (black) | ||||
11 | 8X4959522B | Switch mounting | right rhd | 1 | PR:6XE | |
8X4959522B 6PS | From £22.92 | soul (black) | ||||
11 | 8X4959522C | Switch mounting | right lhd | 1 | ||
8X4959522C 6PS | From £22.92 | soul (black) | ||||
12 | Pull handle No replacement part Included in position: | 1 | ||||
13 | 8X4831541 | From £3.15 | Securing bracket | left a. right | 2 | |
14 | N 10752901 | From £0.59 | fillister hd. bolt | M5X18 | 2 | |
15 | 8X0868783A | From £7.33 | reinforcement plate Inner actuator | left | 1 | PR:9VK |
15 | 8X0868783 | From £7.33 | reinforcement plate Inner actuator | left | 1 | PR:8RE,8RX, 9VD |
15 | 8X0868784A | From £7.33 | reinforcement plate Inner actuator | right | 1 | PR:9VK |
15 | 8X0868784 | From £7.33 | reinforcement plate Inner actuator | right | 1 | PR:8RE,8RX, 9VD |
16 | N 10415903 | From £0.18 | Oval hexagon socket head bolt | 4X12 | 12 | |
17 | 8X0035423 | Loudspeaker trim | left | 1 | PR:8RE,8RX, 9VD | |
8X0035423 4PK | From £8.38 | soul (black) | ||||
17 | 8X0035423A | Loudspeaker trim | left | 1 | PR:9VK | |
8X0035423A 4PK | From £8.38 | soul (black) | ||||
17 | 8X0035424 | Loudspeaker trim | right | 1 | PR:8RE,8RX, 9VD | |
8X0035424 4PK | From £8.38 | soul (black) | ||||
17 | 8X0035424A | Loudspeaker trim | right | 1 | PR:9VK | |
8X0035424A 4PK | From £8.38 | soul (black) | ||||
18 | 8X0867443 | From £1.49 | Cover cap | left rhd | 1 | |
18 | 8X0867444 | From £1.49 | Cover cap | right lhd | 1 | |
19 | 8X4857505A | Cover | left inner | 1 | ||
8X4857505A 4PK | From £6.81 | soul (black) | ||||
19 | 8X4857506A | Cover | right inner | 1 | ||
8X4857506A 4PK | From £6.81 | soul (black) | ||||
20 | Switch for electric window regulator see illustration: | driver side 4-door 959-000 | ||||
21 | switch for electrically operated and folding rear view mirror see illustration: | 959-000 | ||||
22 | button for deactivation of anti-theft alarm system see illustration: | 959-000 | ||||
23 | Safety switch for central locking see illustration: | 959-000 | ||||
25 | fibre optic conductor see illustration: | 959-000 | ||||
26 | fibre optic conductor door handle, inner see illustration: | 947-000 | ||||
27 | fibre optic conductor see illustration: | 947-000 | ||||
28 | LED light see illustration: | 947-000 | ||||
28 | 8E0867443 | From £6.52 | Dummy cover Entry lighting | 1 | PR:QQ0 | |
29 | Inner actuator see illustration: | 837-035 | ||||
30 | Seal see illustration: | outer 837-045 | ||||
31 | Sleeve see illustration: | 951-040 |
