Part N91203601 is marked as number 33 in the diagram.

Volkswagen Flat Head Multi-Point
Socket Bolt N91203601

Condition: 100% new and genuine Weight: 0.021 kg.
Available to order
To ensure that part fits your vehicle, click here to check the fitment table.
GENUINE VW/AUDI
Dispatch time 3 - 5 business days
... ...
-
+
Add to cart
GENUINE VW 2
Dispatch time 2 - 5 business days
... ...
-
+
Add to cart
VAG L
Dispatch time 7 - 12 business days
... ...
-
+
Add to cart
The same part number corresponds to the same part. If the part number is identical, the part fits all VAG (Volkswagen Audi group) vehicles (for example You are looking for a SEAT or SKODA, but the part is available from VW/AUDI warehouse - the part will fit Your car). Depending on the selected warehouse, the shipping times and availability may vary.
Stay with the suggested choice
Reveal all warehouses (3 options)
There are no custom taxes for European and United Kingdom customers
PRICE MATCH GUARANTEE
If you find a lower price at an eligible retailer website, we will match it.
About the product
Part N91203601 is marked as number 33 in the diagram. You can also view detailed part diagram, Browse diagram.


About Genuine Parts


When it comes to your car, you simply want the best. Whether you own a BMW, Mercedes, Audi, Volkswagen, Porsche, or a Mini, LLL Parts knows how to treat your vehicle. Fitting your ride with OEM parts will ensure that it continues running like a brand new car. By sourcing your parts with us, no one will ever know your automobile’s actual age.

By maintaining your vehicle with the best parts money can buy, you’re gaining the peace of mind that everything will fit accordingly. No one wants to deal with ordering a part, waiting ages for it to arrive, only to find that it doesn’t go together with the model. If you’re looking to save both time and cash in the long run, LLL Parts is your answer.

LLL Parts offers top-quality OEM products. Everything is easily searchable through our easy-to-use catalogues. All you have to do is enter your car brand and manufacture year, as well as the parts you are sourcing for, and voila - a list of genuine parts is ready for your perusal. That’s not all; each item will come with its detailed parts scheme and fitment information to help you make an informed decision.

We at LLL Parts understand that you want to treat your car right. After all, this is the vehicle that will bring you places, keep you and your family safe, and allow you to see the world. That is why we offer support to help you find the exact part you’re looking for. Contact us today. We’re always ready to assist!

We supply the most popular car brand parts, including Fiat, Smart, Skoda, Ford, Porsche, Mini, Volkswagen, Audi, Mercedes-benz, BMW, Seat,
Part fits these cars
The fitment table is for general fitment information. We will verify the fitment for you if you leave your VIN/Chassis number during the checkout. Additionally, your purchase is covered by 14 days return policy.
Volkswagen Crafter
2012 - 2024   Volkswagen   Crafter
Browse part diagram

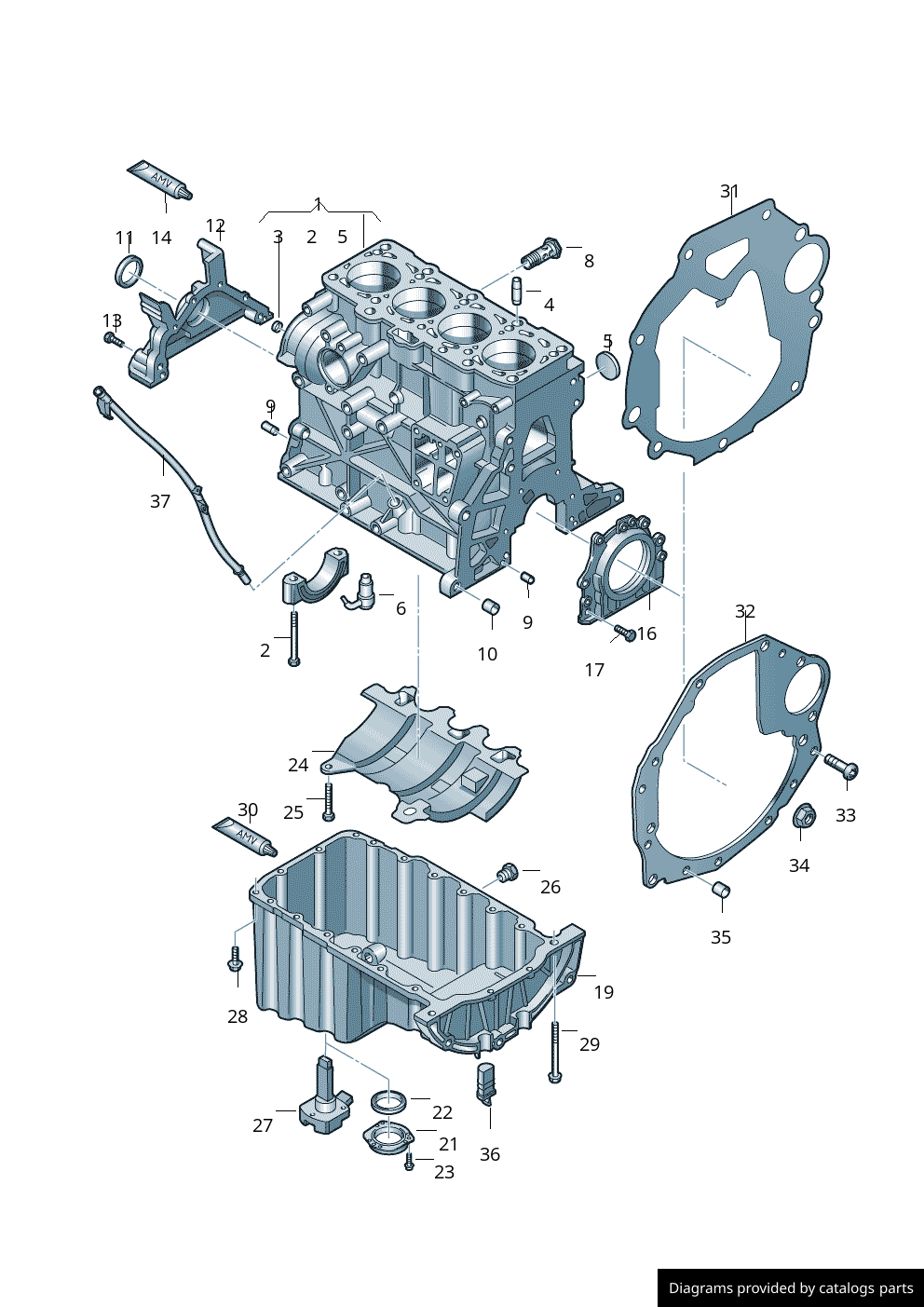

Diagram information provided by catalogparts

Car part diagram
NoPart codeTitleNoteRequired quantityModelPrice
Crankcase housing
oil sump
2.0 Ltr.4-cylinder+
Diesel eng.+
CKTB,CKTC,
CKUB,CKUC,
CSLA,CSLB,
CSLC,CSNA
103L103011ALCrankcase housing


also use:
see illustration, item:



Piston
107-010,1
1CKTB,CKTC,
CSLA,CSLB,
CSLC
From £2,960.40
103L103011ANCrankcase housing

also use:
see illustration, item:


Piston
107-010,1
1CKUB,CKUC,
CSNA
From £2,960.40
2N 90889701Hexagon boltM10X8010From £5.05
3N 01190710End cap143From £0.26
4028103039Adowel sleeve14,15X212From £3.44
5036103113AEnd cap36,62From £6.89
6038103157Coil spray jetM104From £22.44
8Banjo bolt
see illustration, item:

145-050,22
CKTB,CKTC,
CSLA,CSLB,
CSLC
8threaded union
see illustration, item:

145-053,26
CKUB,CKUC,
CSNA
9N 0432072Cylinder pin8X144From £0.26
10022103139Bdowel sleeve16X13,52CKTB,CKTC,
CKUB,CKUC,
CSLA,CSLB,
CSLC
From £3.44
1003L103139dowel sleeve13X111CSNAFrom £2.92
11038103085EShaft oil seal
D >> - 24.07.2012
35X48X101From £22.96
1103L103085Bshaft oil seal
(shaft rotation: to right)
D - 25.07.2012>>
35X48X101From £12.25
1203G103153BSealing flangefront1
13N 90945002hexagon socket head bolt with
shoulder
M7X21,56From £1.13
14D 176501A1Silicon sealant
Sealing flange
50ml
front
XFrom £15.80
1603L103171ASealing flange with sealing
ring and trigger wheel
rear1From £122.83
17N 90945002hexagon socket head bolt with
shoulder
M7X21,56From £1.13
1903L103603LEngine oil sump with opening
for oil level sensor
1From £237.34
2103G103707cover for oil sump
for models without extended
servicing intervals
1From £13.33
22038103196seal ring1From £6.09
23N 91065201Socket head collared bolt with
inner multipoint head
M6X283From £0.98
2403L103623ASurge lock1From £33.22
25N 90704006hexagon socket head bolt with
shoulder
M7X551From £1.42
26N 90813202Seal bolt with sealing
ring
M14X1,5X221From £2.66
27oil level sensor
see illustration, item:

919-045,1
28N 90735604hexagon socket head bolt with
shoulder
M7X2818From £1.16
29N 10672701Hex collared boltM10X100X902From £2.11
30D 176501A1Silicon sealant
oil sump
50mlXFrom £15.80
3103L103647DCover plate1CKTB,CKTC,
CKUC,CSLA,
CSLB,CSLC
From £16.74
3203L103647ECover plate1CKUB,CSNAFrom £105.12
33N 91203601Flat head multi-point
socket bolt
M12X403CKUB,CSNAFrom £1.56
34N 10474803Hexagon collar nutM121CKUB,CSNAFrom £0.82
3503L103139dowel sleeve13X112CKUB,CSNAFrom £2.92
36Cover cap
Not for this model
37tube for oil dipstick
see illustration, item:

115-030,11
