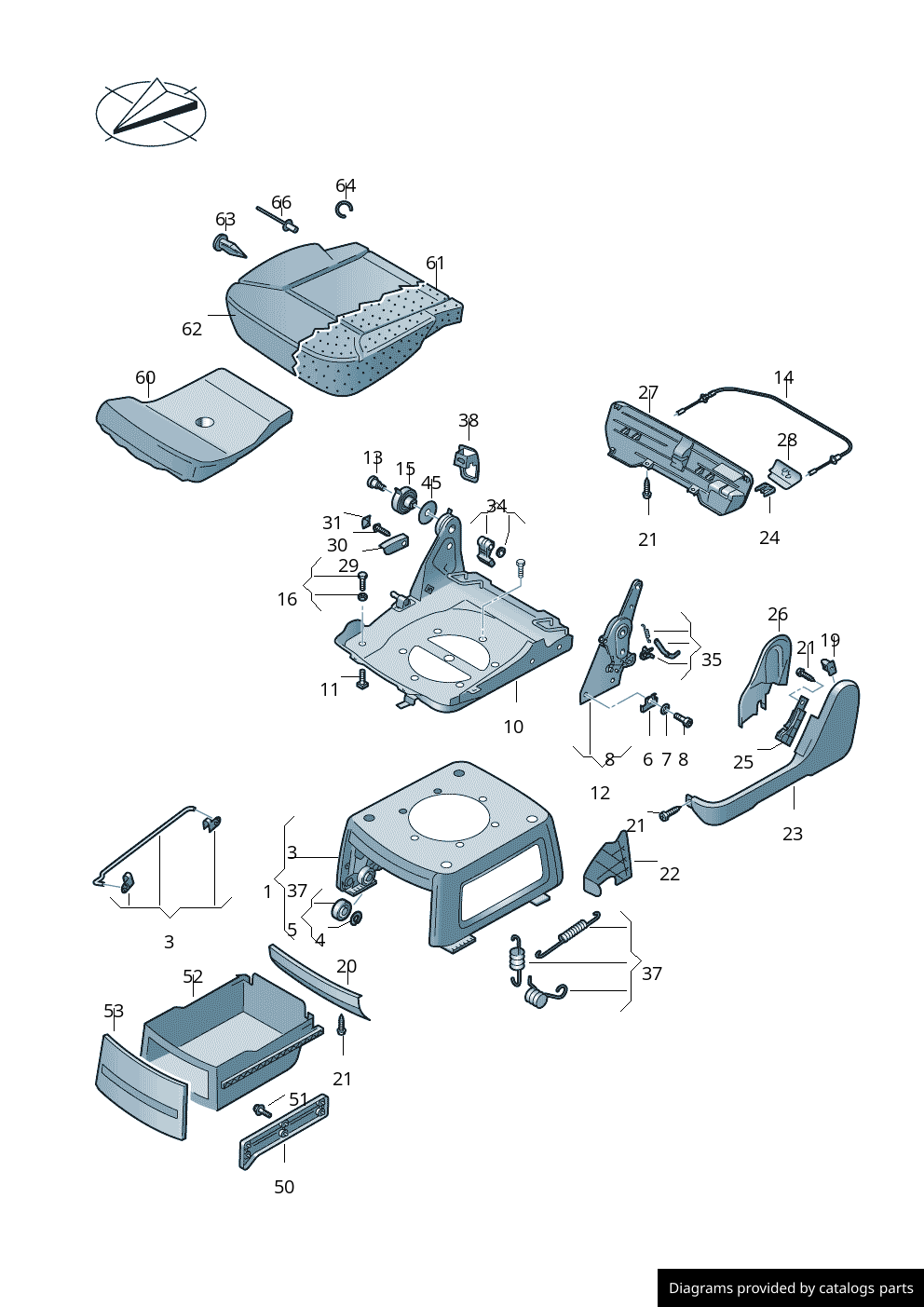

No | Part code | Price | Title | Note | Req. quant. | Model |
Indiv. seats in pass. comp. | 3. seat bench | PR:3VE | ||||
1 | 7E5885670B | seat box | 1 | |||
7E5885670B UH8 | From £528.62 | Titan black | ||||
3 | 7H5885289B | From £5.31 | connecting rod | 2 | ||
4 | N 0124161 | From £0.27 | Securing ring track roller | 16X1 | 4 | |
5 | 7E5883277 | From £19.26 | 1 set rollers | 1 | ||
6 | Bracket see illustration, item: | 883-650,6 | ||||
7 | spacer sleeve see illustration, item: | 883-650,7 | ||||
8 | N 91003802 | From £1.70 | fillister head bolt with multi-point socket head | M12X55 | 2 | |
10 | 7E5885139A | From £319.27 | Seat frame | 1 | ||
11 | Hexagon bolt Not for this model | |||||
12 | 7E5883489 | hinge - folding backrest | 1 | |||
13 | N 91094901 | From £3.08 | Cylinder fitting screw with inner multipoint head | M8X13X55 | 1 | |
14 | 7H5883257B | From £16.32 | Cable for backrest release | 1 | ||
15 | 7H5883349A | From £17.08 | Spring | 1 | ||
16 | 7H5885908B | From £50.65 | repair kit for seat | 1 | ||
19 | 357867646 | Clip | 1 | |||
357867646 9B9 | From £0.34 | Satin black | ||||
20 | 7H5883319E | Seat frame trim | 1 | |||
7H5883319E 82V | From £60.29 | Titan black | ||||
21 | N 10415001 | From £0.26 | oval head panel screw | 4,8X13 | 7 | |
22 | 7H5883320A | Trim for guide rail | left | 1 | ||
7H5883320A 82V | From £17.88 | Titan black | ||||
22 | 7H5883320B | Trim for guide rail | right | 1 | ||
7H5883320B 82V | From £17.88 | Titan black | ||||
23 | 7H5883317F | Seat frame trim | left | 1 | ||
7H5883317F 82V | From £60.29 | Titan black | ||||
23 | 7H5883318J | Seat frame trim | right | 1 | ||
7H5883318J 82V | From £60.29 | Titan black | ||||
24 | 7H5883883 | From £2.02 | Clip | 1 | ||
25 | 7H5883707A | From £0.89 | Seat belt guide | 1 | ||
26 | 7H5883937B | Cover | left | 1 | ||
7H5883937B 82V | From £12.52 | Titan black | ||||
27 | 7E5883320 | Seat frame trim | rear | 1 | ||
7E5883320 82V | Titan black | |||||
27 | 7E5883320B | Seat frame trim | rear | 1 | ||
7E5883320B 82V | From £60.29 | Titan black | ||||
28 | 7H5883251 | handle for backrest adjustment | rear | 1 | ||
7H5883251 9B9 | From £14.03 | Satin black | ||||
29 | 7H5883252B | handle for backrest adjustment | side | 1 | ||
7H5883252B 9B9 | From £14.03 | Satin black | ||||
30 | N 10586401 | From £0.26 | Oval hexagon socket head bolt | M5X10 | 1 | |
31 | 7H5883499C | Cover | 1 | |||
7H5883499C 9B9 | From £0.27 | Satin black | ||||
34 | 7H5883593 | From £17.88 | release lever | 1 | ||
35 | 7H5883385A | From £40.57 | Sundry parts set for backrest release mechanism | 1 | ||
37 | 7H5883169 | From £39.33 | 1 set springs | 1 | ||
38 | 7H5886197 | Cover cap | 1 | |||
7H5886197 82V | From £0.69 | Titan black | ||||
45 | 7H5885167A | From £4.41 | bush for backrest | 1 | ||
50 | 7H5883211A | From £8.82 | Guide rail | left | 1 | |
50 | 7H5883212A | From £8.82 | Guide rail | right | 1 | |
51 | N 10632004 | From £0.36 | Hex socket oval head collared | M6X16 | 8 | |
52 | 7H5883655 | drawer | 1 | |||
7H5883655 82V | From £71.28 | Titan black | ||||
53 | 7H5883617 | Trim | 1 | |||
7H5883617 82V | From £9.29 | Titan black | ||||
60 | 7H5883205A | From £34.23 | Padded surface | 1 | ||
61 | Seat padding see illustration, item: | 883-310,2 | ||||
62 | Seat cover see illustration, item: | 883-310,4 | ||||
63 | 171881449A | Clip | 1 | |||
171881449A 01C | From £0.44 | Satin black | ||||
64 | N 0152612 | From £0.22 | Clip | 20X1,8 | X | |
66 | N 91153701 | From £0.23 | Pop rivet | 3,2X11 | 1 |
