No | Part code | Title | Note | Required quantity | Model | Price |

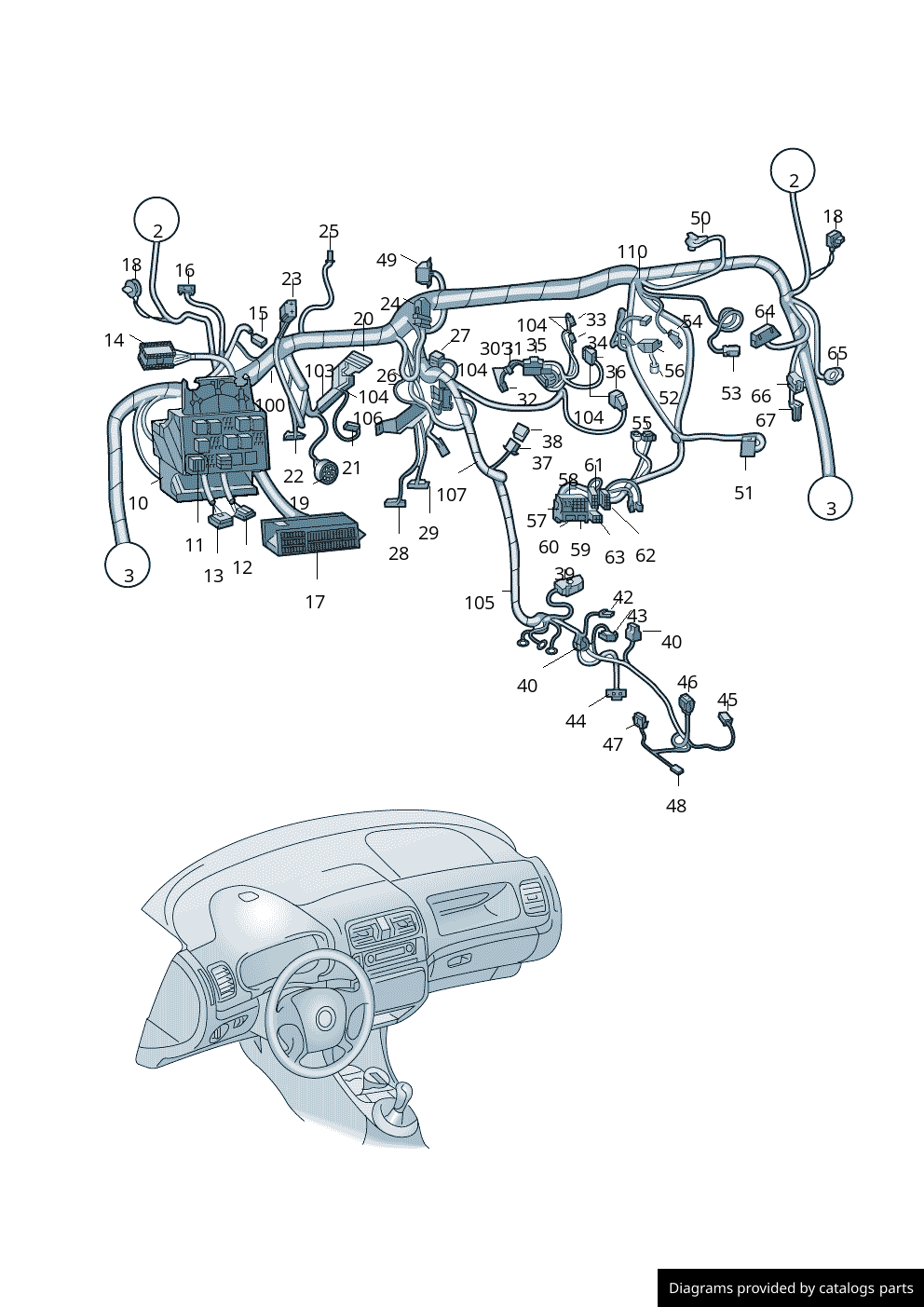

Central wiring set area: Wiring set for dash panel Assoc. part -> -> -> -> -> -> | 971-80 POS.1 | |||||
1 | No replacement part | |||||
Individual parts area: Wiring set for dash panel *No 'FI' function possible | ||||||
1 | harness for engine compartment see illustration: | 971-081 | ||||
2 | roof wiring harness see illustration: | 971-090 | ||||
3 | wiring harness for interior see illustration: | left 971-095 | ||||
4 | wiring harness for interior see illustration: | right 971-096 | ||||
10 | 6Q0937701A | Flat contact housing with contact locking mechanism Onboard supply control unit Possible single wire: | 5 pin brown 000 979 131 E 000 979 131 EA 000 979 133 000 979 133 EA | 1 | From £5.06 | |
10 | 6Q0937701 | Flat contact housing with contact locking mechanism Onboard supply control unit Possible single wire: | 5 pin black 000 979 131 E 000 979 131 EA | 1 | From £5.06 | |
10 | 6Q0937711 | Flat contact housing with contact locking mechanism Onboard supply control unit Possible single wire: | 6 pin black 000 979 133 000 979 133 EA | 1 | From £5.06 | |
10 | 6Q0937711A | Flat contact housing with contact locking mechanism Onboard supply control unit Possible single wire: | 6 pin brown 000 979 133 000 979 133 EA | 1 | From £5.06 | |
10 | 6Q0937711B | Flat contact housing with contact locking mechanism Onboard supply control unit Possible single wire: | 6 pin red 000 979 133 000 979 133 EA | 1 | From £5.06 | |
10 | 6Q0937713 | Flat contact housing with contact locking mechanism Onboard supply control unit Possible single wire: | 16 pin black 000 979 131 E 000 979 131 EA 000 979 133 000 979 133 EA 000 979 225 E | 1 | From £9.35 | |
10 | 6Q0937702B | Flat contact housing with contact locking mechanism Onboard supply control unit Possible single wire: | 6 pin red 000 979 131 E 000 979 131 EA | 1 | From £5.76 | |
10 | 6Q0937714A | Flat contact housing with contact locking mechanism Onboard supply control unit Possible single wire: | 18 pin brown 000 979 131 E 000 979 131 EA | 1 | From £9.98 | |
10 | 6Q0937702A | Flat contact housing with contact locking mechanism Onboard supply control unit Possible single wire: | 6 pin brown 000 979 131 E 000 979 131 EA | 1 | From £5.76 | |
10 | 6Q0937714 | Flat contact housing with contact locking mechanism Onboard supply control unit Possible single wire: | 18 pin black 000 979 131 E 000 979 131 EA | 1 | From £10.07 | |
10 | 6Q0937702 | Flat contact housing with contact locking mechanism Onboard supply control unit Possible single wire: | 6 pin black 000 979 131 E 000 979 131 EA | 1 | From £5.76 | |
11 | 443937527 | relay plate Possible single wire: | 9 pin 000 979 114 E 000 979 133 000 979 133 EA 000 979 135 E 000 979 212 E 000 979 225 E | X X X X X X X | From £10.43 | |
11 | 8E0937527 | Adapter dual small relay plate Possible single wire: | 10 pin black 000 979 133 000 979 236 E | 1 X X | From £5.19 | |
11 | 4B0937527 | relay plate Possible single wire: | 6 pin 000 979 144 000 979 236 E 000 979 306 | X X X X | 1,0 2,5 4,0 | From £10.43 |
12 | 8N0971636 | Flat contact housing for day driving headlights Possible single wire: | 6 pin 000 979 106 E 000 979 114 E 000 979 212 E 000 979 405 | 1 X X X X | 1,0 1,0 2,5 6,0 | From £6.54 |
13 | 8D0972695 | Flat contact housing with contact locking mechanism Test socket Possible single wire: | 16 pin 000 979 011 | 1 X | ||
14 | 1J0972999 | Flat contact housing multiple switch f.side lights, headlights and fog lights Possible single wire: | 17-pin 000 979 133 000 979 227 E | 1 X X | From £10.07 | |
15 | 8L0971883 | Flat contact housing Switch for headlight range control Possible single wire: | 8 pin black 000 979 009 E 000 979 009 EA | 1 X X | 0,5 0,5 | From £6.92 |
16 | 1J0973332 | Flat contact housing Navigation unit Possible single wire: | 2 pin 000 979 131 E 000 979 131 EA | 1 | VIA MICHELIN MIO MOOV | From £4.80 |
17 | see illustration: | 937-000 | ||||
18 | 3B0972712 | Flat connector housing with contact locking mechanism Treble speaker Possible single wire: | 2 pin 000 979 124 | 2 X | From £4.80 | |
19 | 8D0971975 | Flat contact housing Ignition/starter switch Possible single wire: D >> - 31.10.2008 | 8 pin 000 979 135 E 000 979 227 E 000 979 407 E | 1 X X X | 1,0 2,5 6,0 | From £7.82 |
19 | 6R0971975 | Flat contact housing Rework if necessary Possible single wire: D - 01.05.2008>> | 8 pin black 000 979 027/C 000 979 152/C 000 979 243/C 000 979 308/C | 1 X X X X | 0,5 1,0 2,5 4,0 | From £6.92 |
20 | 6Q0971975B | Flat contact housing steering col. combi switch Possible single wire: | 41-pin black 000 979 009 E 000 979 009 EA 000 979 227 E | 1 X X X | From £25.51 | |
21 | 1K0972704G | Flat contact housing switch for radio wave remote control Possible single wire: | 4 pin blue 000 979 009 E 000 979 009 EA 000 979 044 EA | 1 | CODE 4 | From £4.36 |
22 | 6N0972704 | Flat contact housing Switch for clutch pedal Possible single wire: | 4 pin black 000 979 021 E 000 979 021 EA 000 979 133 000 979 133 EA 000 979 225 E | 1 | From £6.92 | |
23 | 6X0972928 | Flat contact housing Combi-instrument Possible single wire: | 8 pin 000 979 133 000 979 133 EA 000 979 225 E 000 979 225 EA | 1 | From £5.76 | |
24 | 1J0972977C | flat contact housing with cap Combi-instrument Possible single wire: | 32 pin green 000 979 009 E 000 979 009 EA | 1 X X | 0,5 0,5 | From £15.76 |
25 | 8E0971832 | Flat contact housing with contact locking mechanism Sun sensor also to be used for: Possible single wire: | 4 pin black red 000 979 009 E 000 979 009 EA | 1 | From £5.06 | |
26 | 4B0971832 | Flat contact housing with contact locking mechanism reader coil Possible single wire: | 2 pin 000 979 009 E 000 979 009 EA | 1 | From £4.80 | |
27 | 6Q0972923 | Flat contact housing with contact locking mechanism Central control unit for convenience system Possible single wire: | 23 pin black 000 979 131/A 000 979 133/A 000 979 227 E | 1 | From £14.09 | |
27 | 6Q0972883A | Flat contact housing with contact locking mechanism Central control unit for convenience system Possible single wire: | 12 pin brown 000 979 131 E 000 979 131 EA 000 979 133 000 979 133 EA | 1 | From £7.94 | |
27 | 6Q0972883 | Flat contact housing with contact locking mechanism Central control unit for convenience system Possible single wire: | 12 pin black 000 979 131 E 000 979 131 EA 000 979 133 000 979 133 EA | 1 | From £7.94 | |
28 | 1J0972704 | Flat contact housing switch for brake pedal Possible single wire: | 4 pin black 000 979 021 E 000 979 021 EA 000 979 225 E 000 979 225 EA | 1 | From £6.92 | |
29 | 3B0972706 | Flat contact housing Switch for accelerator pedal Possible single wire: | 6 pin 000 979 131 E | 1 X | From £6.92 | |
30 | 4D0971636A | Flat contact housing Pushbutton for traction control -TCS- Possible single wire: | 6 pin brown 000 979 009 E 000 979 009 EA | X X X | 0,5 0,5 | |
31 | 5J0971636 | Flat contact housing Pushbutton for electronic stabilisation program -ESP- Possible single wire: | 6 pin 000 979 009 E 000 979 009 EA | X X X | 0,5 0,5 | From £1.31 |
32 | 4D0971636 | Flat contact housing button for heated rear window also to be used for: Possible single wire: | 6 pin black white 000 979 009 E 000 979 009 EA | X X X | 0,5 0,5 | From £8.95 |
33 | 4D0971636B | Flat contact housing Hazard warning pushbutton Possible single wire: | 6 pin red 000 979 009 E 000 979 009 EA | X X X | 0,5 0,5 | |
34 | 4D0971636D | Flat contact housing Control lamp for deact- ivation of front passenger airbag Possible single wire: | 6 pin blue 000 979 009 E 000 979 009 EA | X X X | 0,5 0,5 | From £9.35 |
35 | 6Q0937713 | Flat contact housing with contact locking mechanism fresh air and heater controls Possible single wire: | 16 pin black 000 979 131 E 000 979 131 EA 000 979 133 000 979 133 EA 000 979 225 E | 1 | From £9.35 | |
36 | 8E0972112 | Flat contact housing with contact locking mechanism Display and control panel with CU for electronically controlled air-conditioning Possible single wire: | 12 pin black 000 979 009 E 000 979 009 EA | 1 X X | 0,5 0,5 | From £7.18 |
36 | 4A0972883C | Flat contact housing with contact locking mechanism Display and control panel with CU for electronically controlled air-conditioning Possible single wire: | 16 pin 000 979 006 E 000 979 121 000 979 223 E | 1 X X X | 0,5 1.0 2,5 | From £15.89 |
37 | 1J0972725 | Flat contact housing with contact locking mechanism Adapter for airbag Possible single wire: counterpart to: | 10 pin 000 979 133 000 979 133 EA 000 979 225 E 191 972 725 | 1 X X X | 1,0 1,0 2,5 | From £8.64 |
37 | 1J0972722 | Flat contact housing Adapter for airbag Possible single wire: D - 01.10.2007>> | 4 pin 000 979 133 000 979 133 EA 000 979 225 E 000 979 225 EA | X X X X X | ||
38 | 5J0959631 | Adapter for airbag D >> - 30.09.2007 | 1 | From £14.85 | ||
38 | 5J0959631A | Adapter for airbag D - 01.10.2007>> | 1 | From £14.85 | ||
39 | 6Q0972509G | flat connector housing Control unit for airbag Possible single wire: | 75 POLIG GELB/SCHWARZ 000 979 010 EA | 1 X | From £19.53 | |
39 | 6Q0972509M | flat connector housing Control unit for airbag | 75 POLIG brown | 1 | From £28.11 | |
40 | 8N0971636 | Flat contact housing Switch for seat heating Possible single wire: | 6 pin 000 979 106 E 000 979 114 E 000 979 212 E 000 979 405 | 2 X X X X | 1,0 1,0 2,5 6,0 | From £6.54 |
42 | 1K0972704G | Flat contact housing safety switch for central locking system Possible single wire: | 4 pin blue 000 979 009 E 000 979 009 EA 000 979 044 EA | 1 | CODE 4 | From £4.36 |
43 | 3B0972724 | Flat contact housing with contact locking mechanism selector lever Possible single wire: GEGENSTUECK: | 8 pin 000 979 131 E 000 979 131 EA 3B0 972 734 | 1 X X | automatic 1,0 1,0 | From £6.47 |
44 | 1J0971972 | flat connector housing selector lever Possible single wire: | 2 pin 000 979 131 E 000 979 131 EA | 1 X X | automatic 1,0 1,0 | From £3.01 |
45 | 8K0973754 | Flat contact housing AUX-IN socket Possible single wire: | 4 pin black 000 979 009 E 000 979 009 EA | 1 X X | 0,5 0,5 | From £5.06 |
46 | 191919321 | Flat contact housing Socket Possible single wire: | 3 pin 000 979 129 000 979 219 E | 1 | From £5.06 | |
47 | 1J0972722 | Flat contact housing Pushbutton for tyre pressure warning Possible single wire: | 4 pin 000 979 133 000 979 133 EA 000 979 225 E 000 979 225 EA | X X X X X | ||
48 | 1J0973119 | Flat contact housing with contact locking mechanism switch for handbrake warning light Possible single wire: | 2 pin 000 979 131 E 000 979 131 EA | 1 X X | From £4.80 | |
49 | 1J0972753 | Flat contact housing heat exchanger Possible single wire: | 3 pin 000 979 133 | 1 X | 1,0 | From £4.80 |
50 | 4F0971259 | Round connector hsg with cable Airbag unit | 2 pin passenger side yellow/black L=6260MM | 1 | From £79.17 | |
51 | 6Q0972726 | Flat contact housing with contact locking mechanism CD changers Possible single wire: | 12 pin 000 979 131 E 000 979 131 EA | 1 | From £8.64 | |
52 | 1J0973119 | Flat contact housing with contact locking mechanism Switch for glove box lid light Possible single wire: | 2 pin 000 979 131 E 000 979 131 EA | 1 X X | From £4.80 | |
53 | 893971632 | Flat contact housing Glove compartment lid light Possible single wire: | 2 pin 000 979 133 000 979 133 EA 000 979 225 E | X X X X | 1,0 1,0 2,5 | From £4.80 |
54 | 6X0972623 | Flat contact housing Heating air blower Possible single wire: | 6 pin black 000 979 306 000 979 135 E 000 979 227 E 000 979 407 E | 1 | From £6.92 | |
55 | 1J0972722 | Flat contact housing preparation for telephone Possible single wire: | 4 pin 000 979 133 000 979 133 EA 000 979 225 E 000 979 225 EA | X X X X X | PR:9W8 | |
56 | 8E0972112A | Flat contact housing with contact locking mechanism Cellphone mounting holder Possible single wire: | 12 pin black 000 979 009 E 000 979 009 EA | 1 X X | PR:9ZW | From £7.18 |
57 | 3B7035444 | Flat contact housing with additional contact lock and additional connector housing mountings radio Navigation unit Possible single wire: | 8 pin black 000 979 133 000 979 133 EA 000 979 225 E | 1 | BEAT,DANCE CRUISE | From £9.35 |
58 | 3B7035447 | Flat contact housing with contact locking mechanism radio Navigation unit Possible single wire: | 8 pin brown 000 979 133 000 979 133 EA 000 979 225 E | 1 | BEAT,DANCE CRUISE | From £10.07 |
59 | 3B7035447A | Flat contact housing with contact locking mechanism radio Navigation unit CD changers Possible single wire: | 12 pin blue 000 979 009 E 000 979 009 EA 000 979 133 000 979 133 EA | 1 X X X X | BEAT,DANCE CRUISE | From £9.87 |
60 | 3B7035447B | Flat contact housing with contact locking mechanism radio Navigation unit telephone Possible single wire: | 12 pin green 000 979 009 E 000 979 009 EA 000 979 133 000 979 133 EA | 1 X X X X | BEAT,DANCE CRUISE | From £9.87 |
61 | 357035447 | Flat contact housing radio (for retrofitting) Possible single wire: counterpart to: | 8 pin black 000 979 133 000 979 133 EA 000 979 225 E 7M0 972 918 | 1 | PR:8YZ | From £10.07 |
62 | 357035447A | Flat contact housing radio (for retrofitting) for contact: | 8 pin brown N 903 352 03 N 903 353 03 | 1 X X | PR:8YZ | From £10.07 |
63 | 4A0972643A | Flat contact housing radio (for retrofitting) Possible single wire: | 6 pin green 000 979 131 E | 1 X | PR:8YZ | From £6.92 |
64 | 1J0972775 | Flat contact housing with contact locking mechanism wiring harness for heater harness for air conditioner Possible single wire: | 10 pin 000 979 135 E 000 979 227 E 000 979 407 E | 1 | From £7.18 | |
65 | 6Q0972928 | Flat contact housing key switch for deactivating airbag Possible single wire: | 8 pin 000 979 029 A | 1 X | From £7.82 | |
66 | 3D0035131 | Flat contact housing with contact locking mechanism Control unit for fog lamp Possible single wire: | 18 pin 000 979 009 E 000 979 009 EA | 1 | From £13.06 | |
67 | 5J0959869 | Flat contact housing Control unit for fog lamp Possible single wire: | 6 pin 000 979 133 000 979 225 E | 1 | From £2.11 | |
68 | 1K0971371 | Diode, with cable for wire cross section: also use: repair set D >> - 31.10.2008 | 1N4002 1,0 000 979 941 KL.75 | 1 2 | From £13.00 | |
68 | 1K0903357 | Diode, with cable for wire cross section: also use: D - 01.11.2008>> | 1N4007 0,5 000 979 940 | X 2 | ||
100 | N 0209022 | Cable ties | 3,6X246 | X | From £0.26 | |
101 | 6Q0971838A | Cable ties | 1 | From £1.07 | ||
102 | N 90937702 | Cable ties toothed quadrant | 4,6X193 outer | X | From £0.61 | |
103 | 6Q0971615BR | Cable holder | 1 | From £6.70 | ||
104 | N 0209092 | Cable ties | 1 | From £0.09 | ||
105 | 1U0971848A | Cable holder | 1 | From £4.04 | ||
106 | 6Q0971615C | Cable holder | 1 | From £7.24 | ||
107 | 3D0971838N | Cable ties toothed quadrant For hole/material thickness: | 4,5X200 outer 6,5 / 0,3-3 | 1 | From £0.36 | |
108 | 1Z0971003 | Cable ties | 1 | From £1.43 | ||
109 | 6Q0971615AB | Cable holder | 1 | From £7.24 | ||
110 | 3D0971838N | Cable ties toothed quadrant For hole/material thickness: | 4,5X200 outer 6,5 / 0,3-3 | 1 | From £0.36 | |
111 | 3D0971838 | Cable tie with holder for plastic pin: | 5X200 5 | X | From £0.91 |
