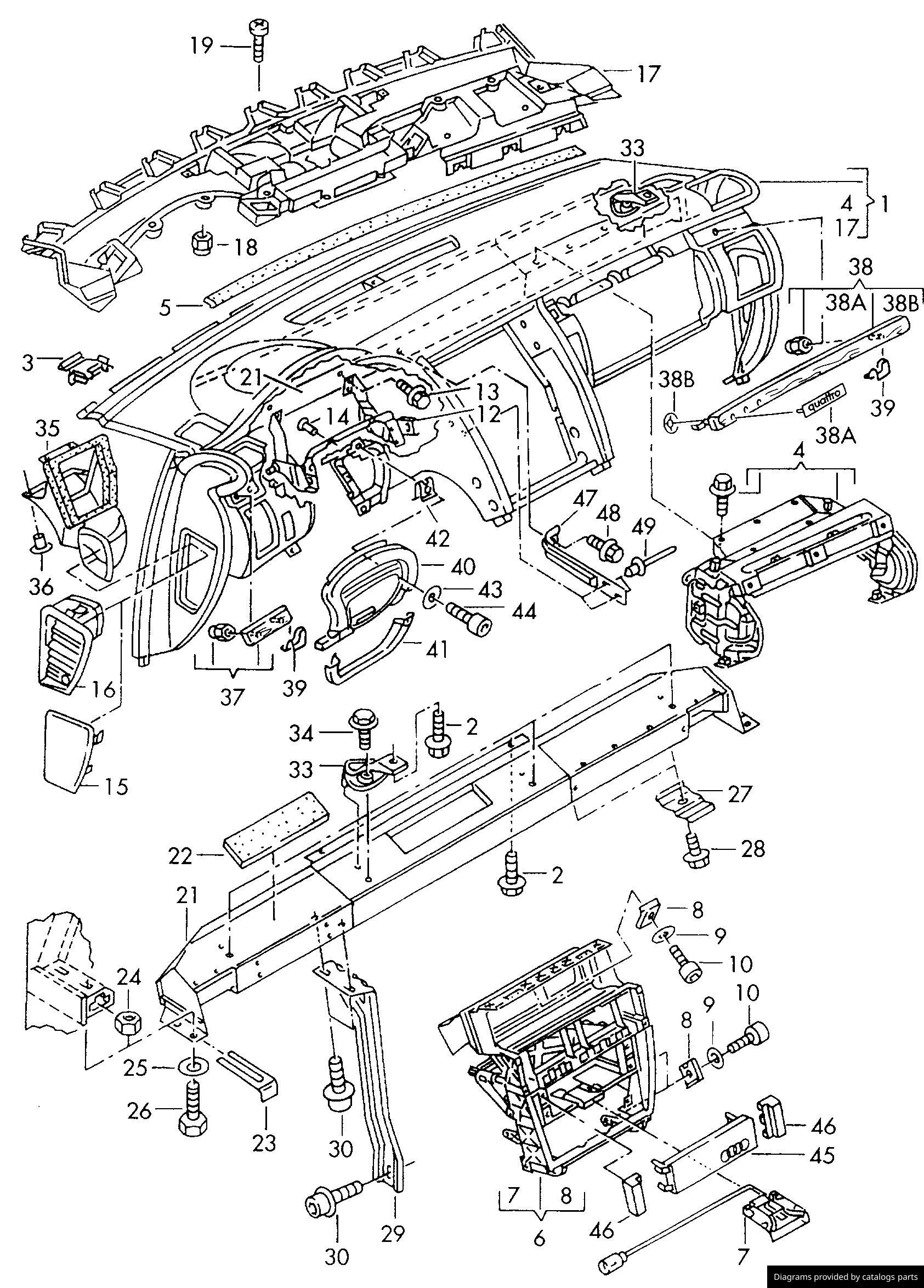

No | Part code | Price | Title | Note | Req. quant. | Model |
dashboard dashboard fittings | ||||||
1 | 4D1857041L | dashboard | lhd | 1 | ||
4D1857041L E77 | lava (grey) | -BW | ||||
4D1857041L 8RZ | anthracite | -BT,BU,BV | ||||
1 | 4D1857041R | dashboard | lhd | 1 | PR:3HA,3HC, 3HE,3HF,3HG | |
4D1857041R E77 | lava (grey) | -BW | ||||
4D1857041R 8RZ | anthracite | -BT,BU,BV,BA | ||||
1 | 4D1857041P | dashboard for vehicles with navagation system and integrated radio | lhd | 1 | PR:3HA,3HC, 3HE,3HF | |
4D1857041P E77 | lava (grey) | -BW | ||||
4D1857041P 8RZ | anthracite | -BA,BT,BU,BV | ||||
1 | 4D1857041N | dashboard | lhd | 1 | PR:3HD | |
4D1857041N 1EW | lava (grey) | -BW | ||||
4D1857041N 3AS | anthracite | -BT-BU,BV,BA | ||||
1 | 4D1857041Q | dashboard for vehicles with navagation system and integrated radio | lhd | 1 | PR:3HD | |
4D1857041Q 1EW | lava (grey) | -BW | ||||
4D1857041Q 3AS | anthracite | -BA,BT,BU,BV | ||||
1 | 4D2857041L | dashboard | rhd | 1 | ||
4D2857041L E77 | lava (grey) | -BW | ||||
4D2857041L 8RZ | anthracite | -BT,BU,BV | ||||
1 | 4D2857041M | dashboard | rhd | 1 | PR:3HA,3HC, 3HE,3HF | |
4D2857041M E77 | lava (grey) | -BW | ||||
4D2857041M 8RZ | anthracite | -BT,BU,BV | ||||
1 | 4D2857041Q | dashboard for vehicles with navagation system and integrated radio | rhd | 1 | PR:3HA,3HC, 3HE,3HF | |
4D2857041Q E77 | lava (grey) | -BW | ||||
4D2857041Q 8RZ | anthracite | -BA,BT,BU,BV | ||||
1 | 4D2857041N | dashboard | rhd | 1 | PR:3HD | |
4D2857041N 1EW | lava (grey) | -BW | ||||
4D2857041N 3AS | anthracite | -BT,BU,BV | ||||
1 | 4D2857041R | dashboard for vehicles with navagation system and integrated radio | rhd | 1 | PR:3HD | |
4D2857041R 1EW | lava (grey) | -BW | ||||
4D2857041R 3AS | anthracite | -BA,BT,BU,BV | ||||
2 | N 90537502 | From £0.58 | Hexagon socket oval head bolt (combi) | M6X20 | X | |
3 | 4D0857949 | Grommet | 2 | |||
4 | Support see illustration: | 880-010 | ||||
5 | 447857670 | Foam underlay (self-adhesive) | 5 | |||
6 | 4D0857007C | insert for dashboard | 1 | |||
4D0857007C 01C | Satin black | |||||
6 | 4D0857007E | insert for dashboard for vehicles with navagation system and integrated radio | 1 | |||
4D0857007E 01C | Satin black | |||||
7 | 4D0820541 | Temperature sensor | 1 | |||
8 | N 90368203 | From £0.52 | Speed nut | M5X20,8X15 | X | |
9 | N 01152318 | Washer | 5 | 5 | ||
10 | N 90455603 | From £0.39 | Socket head bolt with hexagon socket head | M5X15 | 5 | |
12 | 4D1858215 | Reinforcement for dash panel | lhd | 1 | ||
12 | 4D2858215 | Reinforcement for dash panel | rhd | 1 | ||
13 | N 90643301 | hexagon head bolt (combi) | M5X9 | 4 | ||
15 | 4D0857045 | Cover cap | left | 1 | ||
4D0857045 C70 | lava (grey) | -BW | ||||
4D0857045 9XB | anthracite | -BT,BU,BV,BA | ||||
15 | 4D0857046 | Cover cap | right | 1 | ||
4D0857046 C70 | lava (grey) | -BW | ||||
4D0857046 9XB | anthracite | -BT,BU,BV,BA | ||||
16 | 4D0857481 | Cover cap for vehicles with rear compartment heating b-pillar | left | 1 | ||
4D0857481 E40 | lava (grey) | -BW | ||||
4D0857481 01C | Satin black | -BA,BT,BU,BV | ||||
16 | 4D0857482 | Cover for vehicles with rear compartment heating b-pillar | right | 1 | ||
4D0857482 E40 | lava (grey) | -BW | ||||
4D0857482 01C | Satin black | -BA,BT,BU,BV | ||||
17 | No replacement part | |||||
18 | N 0111812 | From £0.70 | hexagon nut, self-locking | M4 | 2 | |
19 | N 10166701 | oval head self-tapping screw | 3,9X25 | 1 | ||
21 | 4D1857011G | dashboard carrier | lhd | 1 | ||
21 | 4D2857011G | dashboard carrier | rhd | 1 | ||
22 | No replacement part | |||||
23 | 4D0857173 | Distance piece | X | |||
24 | N 10261302 | Hexagon collar nut | M10 | 4 | ||
25 | N 0116726 | From £0.16 | Washer | 10,5X30X2,5 | 4 | |
26 | N 10170604 | From £0.99 | Hexagon bolt | M10X35 | 4 | |
27 | 4D0857134A | lock bolt | 2 | |||
28 | N 90643301 | hexagon head bolt (combi) | M5X9 | 2 | ||
29 | 4D1857195A | Support | lhd | 1 | ||
29 | 4D2857195A | Support | rhd | 1 | ||
533867910A | From £6.54 | Felt strips (self-adhesive) 'order qty. 25' | 20X1X880MM | X | ||
30 | N 90415403 | Socket head bolt with hexagon socket head (combination) | M8X22 | 3 | ||
33 | 4D0857319A | Support | 4 | |||
34 | N 90482001 | From £0.22 | hexagon head bolt (combi) | M5X15 | 4 | |
35 | 4D0857463 | Air guide | left | 1 | ||
35 | 4D0857464 | Air guide | right | 1 | ||
35 | 4D0857463A | Air guide for vehicles with rear compartment heating | left | 1 | ||
35 | 4D0857464A | Air guide for vehicles with rear compartment heating | right | 1 | ||
36 | N 90097802 | From £0.33 | Pop rivet | 4X8 | X | |
37 | 4D1853191D | Trim | left lhd | 1 | PR:5MW | |
4D1853191D 1PY | myrtle | |||||
37 | 4D1853191E | Trim | left lhd | 1 | PR:5MX | |
4D1853191E 2PZ | birds eye maple | |||||
38 | 4D1853192C | Trim | right lhd | 1 | PR:5MG | |
4D1853192C 1WV | nut tree brown | |||||
38 | 4D1853192D | trim with inscription inscription | right lhd 'QUATTRO' | 1 | PR:5MG | |
4D1853192D 1WV | nut tree brown | |||||
38 | 4D1853192J | trim with inscription inscription | right lhd 'QUATTRO' | 1 | PR:5MW | |
4D1853192J 1PY | myrtle | |||||
38 | 4D1853192K | trim with inscription inscription | right lhd 'QUATTRO' | 1 | PR:5MX | |
4D1853192K 2PZ | birds eye maple | |||||
37 | Trim (drivers side) see illustration: | 853-050 | ||||
38 | Trim (passenger side) see illustration: | 853-050 | ||||
38 | inscription see illustration: | "QUATTRO" 853-050 | ||||
38 | N 90015101 | From £2.11 | Clamping washer | 5X11,4 | 3 | |
39 | 4D0858883 | Clip | 3 | |||
40 | 4D1858345A | Cover | upper LHD | 1 | ||
4D1858345A C70 | lava (grey) | -BW | ||||
4D1858345A 9XB | anthracite | -BT,BU,BV,BA | ||||
40 | 4D2858345A | Cover | upper RHD | 1 | ||
4D2858345A C70 | lava (grey) | -BW | ||||
4D2858345A 9XB | anthracite | -BT,BU,BV | ||||
41 | 4D1858347 | Cover | lower LHD | 1 | ||
4D1858347 C70 | lava (grey) | -BW | ||||
4D1858347 9XB | anthracite | -BT,BU,BV,BA | ||||
41 | 4D2858347 | Cover | lower RHD | 1 | ||
4D2858347 C70 | lava (grey) | -BW | ||||
4D2858347 9XB | anthracite | -BT,BU,BV | ||||
42 | N 90368203 | From £0.52 | Speed nut | M5X20,8X15 | 4 | |
43 | N 01152318 | Washer | 5 | 2 | ||
44 | N 90455603 | From £0.39 | Socket head bolt with hexagon socket head | M5X15 | 2 | |
4546 | ** See accessory catalogue ** | |||||
47 | 4D0858285 | bracket for dashboard | 1 | |||
48 | N 90643301 | hexagon head bolt (combi) | M5X9 | 1 | ||
49 | N 90097802 | From £0.33 | Pop rivet | 4X8 | 2 |
