Part 481201647 is marked as number 34 in the diagram.

Porsche / Volkswagen Underlay 481201647

Name: Porsche / Volkswagen Underlay 481201647
SKU: 481201647
Availability: InStock
Rating: 4.9 (134 reviews)

Condition: 100% new and genuine

Not available

To ensure that part fits your vehicle, click here to check the fitment table.

There are no custom taxes for European and United Kingdom customers

PRICE MATCH GUARANTEE

If you find a lower price at an eligible retailer website, we will match it.

Price match

Browse diagram

Description

Part fitment

Product F.A.Q.

Delivery information

About the product

Part 481201647 is marked as number 34 in the diagram. You can also view detailed part diagram, Browse diagram.

About Genuine Parts

When it comes to your car, you simply want the best. Whether you own a BMW, Mercedes, Audi, Volkswagen, Porsche, or a Mini, LLL Parts knows how to treat your vehicle. Fitting your ride with OEM parts will ensure that it continues running like a brand new car. By sourcing your parts with us, no one will ever know your automobile’s actual age.

By maintaining your vehicle with the best parts money can buy, you’re gaining the peace of mind that everything will fit accordingly. No one wants to deal with ordering a part, waiting ages for it to arrive, only to find that it doesn’t go together with the model. If you’re looking to save both time and cash in the long run, LLL Parts is your answer.

LLL Parts offers top-quality OEM products. Everything is easily searchable through our easy-to-use catalogues. All you have to do is enter your car brand and manufacture year, as well as the parts you are sourcing for, and voila - a list of genuine parts is ready for your perusal. That’s not all; each item will come with its detailed parts scheme and fitment information to help you make an informed decision.

We at LLL Parts understand that you want to treat your car right. After all, this is the vehicle that will bring you places, keep you and your family safe, and allow you to see the world. That is why we offer support to help you find the exact part you’re looking for. Contact us today. We’re always ready to assist!

We supply the most popular car brand parts, including Fiat, Smart, Skoda, Ford, Porsche, Mini, Volkswagen, Audi, Mercedes-benz, BMW, Seat,

Part fits these cars

The fitment table is for general fitment information. We will verify the fitment for you if you leave your VIN/Chassis number during the checkout. Additionally, your purchase is covered by 14 days return policy.

Porsche 924

1976 - 1985 Porsche 924

Porsche 924S

1986 - 1988 Porsche 924S

Porsche 944

1982 - 1985 Porsche 944

Volkswagen Rabbit Conv

1981 - 1993 Volkswagen Rabbit Conv Golf Cabrio

Volkswagen Golf

1975 - 1984 Volkswagen Golf

Volkswagen Golf Cabriolet

1981 - 1993 Volkswagen Golf Cabriolet

Volkswagen Jetta

1981 - 1984 Volkswagen Jetta

Volkswagen Jetta

1981 - 1984 Volkswagen Jetta

Volkswagen Rabbit

1975 - 1976 Volkswagen Rabbit

Volkswagen Scirocco

1974 - 1989 Volkswagen Scirocco

Volkswagen Typ 3, Typ 4, K70

1970 - 1975 Volkswagen Typ 3, Typ 4, K70

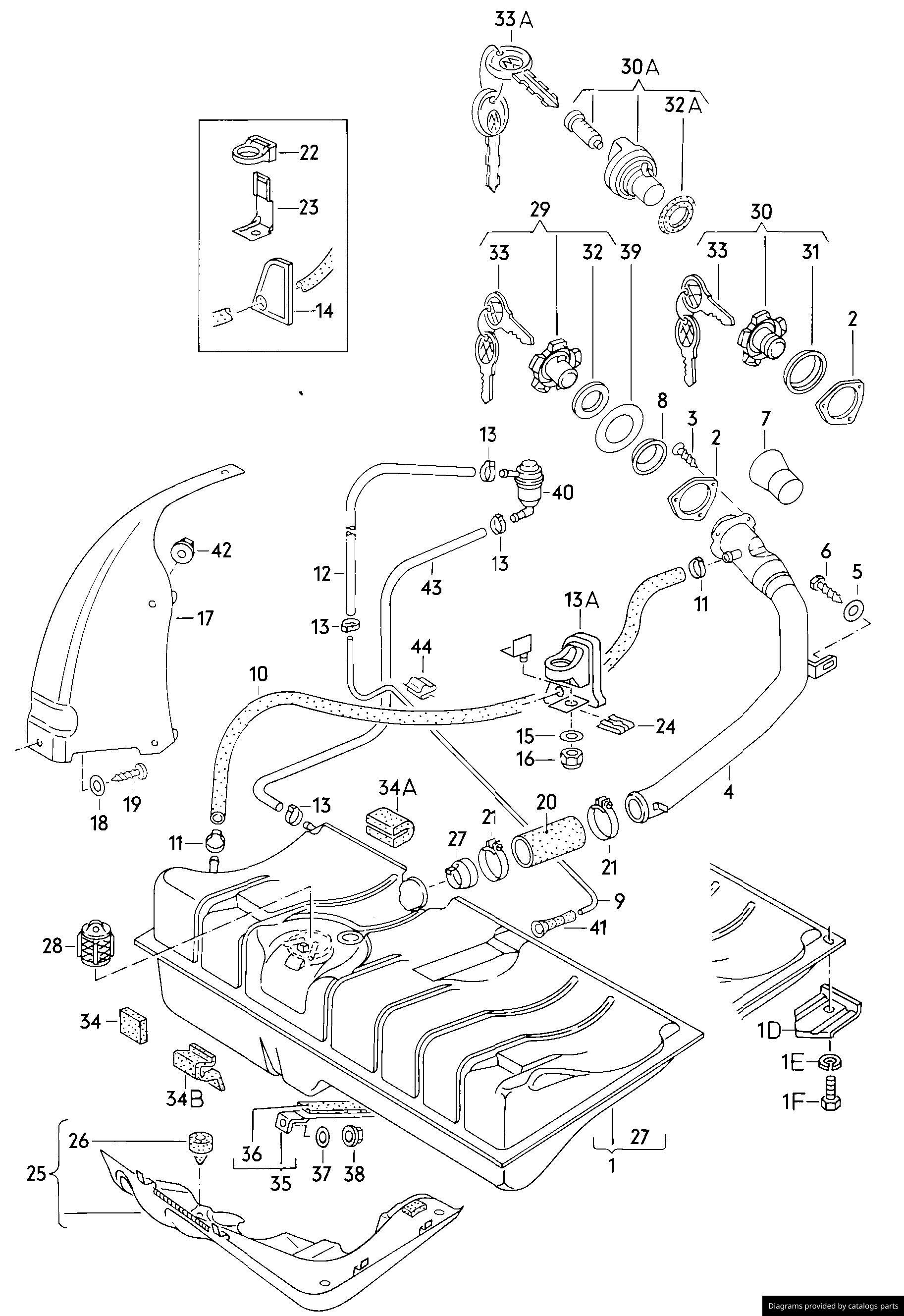

Browse part diagram

Diagram information provided by catalogparts

No	Part code	Price	Title	Note	Req. quant.	Model
			Fuel tank gravity valve Vent hose
1	171201075P		Fuel tank also use:	171 298 121	1 1	carburetor engine
1	171201075Q		Fuel tank also use:	171 298 121	1 1	DIESEL; K-JETRONIC
2	171201119E		seal ring		1	K-JETRONIC
2	171201119E		seal ring For vehicles with retrofitted exhaust gas treatment system		1	GOLF,JETTA: JB,GG,GF
2	171201119F		seal ring		1
3	N 0139981	From £0.19	countersunk panel screw	4,2X16	3
4	171201129F		fuel filler neck		1	GOLF,JETTA
4	161201129F		fuel filler neck for models with catalyst		1	GOLF,JETTA
4	161201129F		fuel filler neck for vehicles with retro-fitted unregulated emission control system		1	GOLF,JETTA JB,GG,GF
4	533201129		fuel filler neck		1	SCIR.
4	155201129		fuel filler neck For vehicles with retrofitted exhaust gas treatment system		1	GOLF CABRIO: JB
4	533201129A		fuel filler neck For vehicles with retrofitted exhaust gas treatment system F >> 53-D-013 409 F 53-D-013 410>>		1 1	SCIR.:JB SCIR.:EW
4	533201129A		fuel filler neck for vehicles with retro-fitted unregulated emission control system (conversion : 01/90 >> 12/95 )		1	SCIR.:GF
	N 90119602		Hose For vehicles with retrofitted exhaust gas treatment system	40X5X410	1	GOLF, GOLF CABRIO: JB; SCIR.:JB,EW
5	N 01166615	From £0.53	Washer	6,4X18X1,6	1
6	N 0159461	From £0.53	hexagon head panel screw	6,5X19	1
7	133201134		funnel for use with leaded fuels		X
8	171201141		ring for fuel filler neck		1	carburetor engine
9	171201158A		Breather line		1
10	171201159B		breather hose with spring	11,8X2,5	1
10	171201153G		breather hose with spring for models with activated charcoal canister	rhd	1	JETTA
11	N 90561801	From £1.74	Clamp	16-28X9X0,5	2
	N 90099601		hose in coils of 5m 'order unit 5'	5,5X3	*
12			shorten to:	650MM	1
13	N 0245281	From £2.23	Hose clamp	8-12X8X0,4	4
13	171201181A		bracket for gravity valve with seal		1
14			Discont. / replace:	171 201 181 A	1
15	N 01152520		Washer	A8,4X16X1,6	2	GOLF,JETTA
16	N 0221464		hexagon nut, self-locking	M8	2	GOLF,JETTA
16	N 90908301		Hexagon collar nut self-locking	M8	2	SCIR.
17	171201192A		Cover	lower	1
18	N 01166615	From £0.53	Washer	6,4X18X1,6	2
19	N 0139681	From £0.36	oval head panel screw	4,8X13	2
20	N 90119601		Hose	40X5X165	1
21	N 0245077		Clamp	32-50X9X0,5	2
22			Discont. / replace:	171 201 181 A	1
23			Discont. / replace:	171 201 181 A	1
24	171201280		Speed nut		1
25	171201283		Guard plate also use:	701 947 149 A 056 129 465 321 201 300 B	1 3 4 X	K-JETRONIC
	701947149A	From £3.06	beading	100MM	3
	056129465		Stop buffer		4
	321201300B	From £13.11	Underlay	620X35X1,5	X
25	171201283		Guard plate For vehicles with retrofitted exhaust gas treatment system F >> 53-D-013 409 F 53-D-013 410>> F 15-C-000 001>> F 15-C-000 001>> F 17-C-000 001>> also use:	701 947 149 A 056 129 465 321 201 300 B	1 1 1 1 1 3 4 X	SCIR.:JB SCIR.:EW GOLF CABRIO: JETTA:JB GOLF:JB
26	056129465		Stop buffer		4	"J..":SCIR.
27	171201285A		pipe insert with flap		1
28	431201511A		Fuel filter		1	DIESEL, T-DIESEL
28	431201511A		Fuel filter		1	GOLF GTI, JETTA: K-JETRONIC
28	431201511		Fuel filter		1	SCIR.: K-JETRONIC, "J..":GOLF/ K-JETRONIC
28	810201511A		Fuel filter		1	GOLF CABRIO: K-JETRONIC
29	155201551		cap, lockable for fuel tank		1
30	443201551AA		cap, lockable for single key system with separate lock cylinder but without tumblers, springs and keys for fuel tank		1
30	443201551S		cap, lockable, not for one key locking system for fuel tank		1
32	155201557		Seal only for:	155 201 551	1
32	811201557A		Seal only for:	443 201 551 S 443 201 551 AA 443 201 551 AB	1
33	111837219A		key		1	GOLF,JETTA
	111837219A S88		Right profile
	111837219A S89		Left profile
	111837219A S97		Left profile
	111837219A S98		Right profile
	111837219A S99		Z profile quote key number for cut keys
33	111837219A		key		X	SCIR.
	111837219A S91		VB profile quote key number for cut keys	NV
33	161837219		main key HV profile quote key number for cut keys		1	SCIR.
34	171201647A		Underlay		2
34	481201647		Underlay		2
	171298121		1 set underlays for fuel tank		X
35	171201651A		tensioning strap		2
36	321201300B	From £13.11	Underlay	620X35X1,5	2
37	N 01152520		Washer	A8,4X16X1,6	2
38	N 0221464		hexagon nut, self-locking	M8	2
39	171201681D		Cover ring for filling piece		1	carburetor engine K-JETRONIC
39	171201681E		Cover ring for filling piece with lettering	'DIESEL'	1	DIESEL, T-DIESEL
39	171201681G		Cover ring for filling piece		1	FORMEL E
39	171201681D		Cover ring for filling piece for vehicles with retro-fitted unregulated emission control system		1	GOLF,JETTA: GG,GF
40	161201753		gravity valve		1	carburetor engine DIESEL
40	161201753A		gravity valve		1	K-JETRONIC
	861201815		Hose bracket	10/10MM	1	SCIR.
41	321201890		end piece		1
42	171201969	From £0.86	Hexagon collar nut	5	1
	N 90099601		hose in coils of 5m 'order unit 5'	5,5X3	*
43			shorten to:	750MM	1	GOLF,JETTA
43			shorten to:	650MM	1	SCIR.
44	803971847		cable terminal		2
	311415535		Bungs		1	SCIR.
