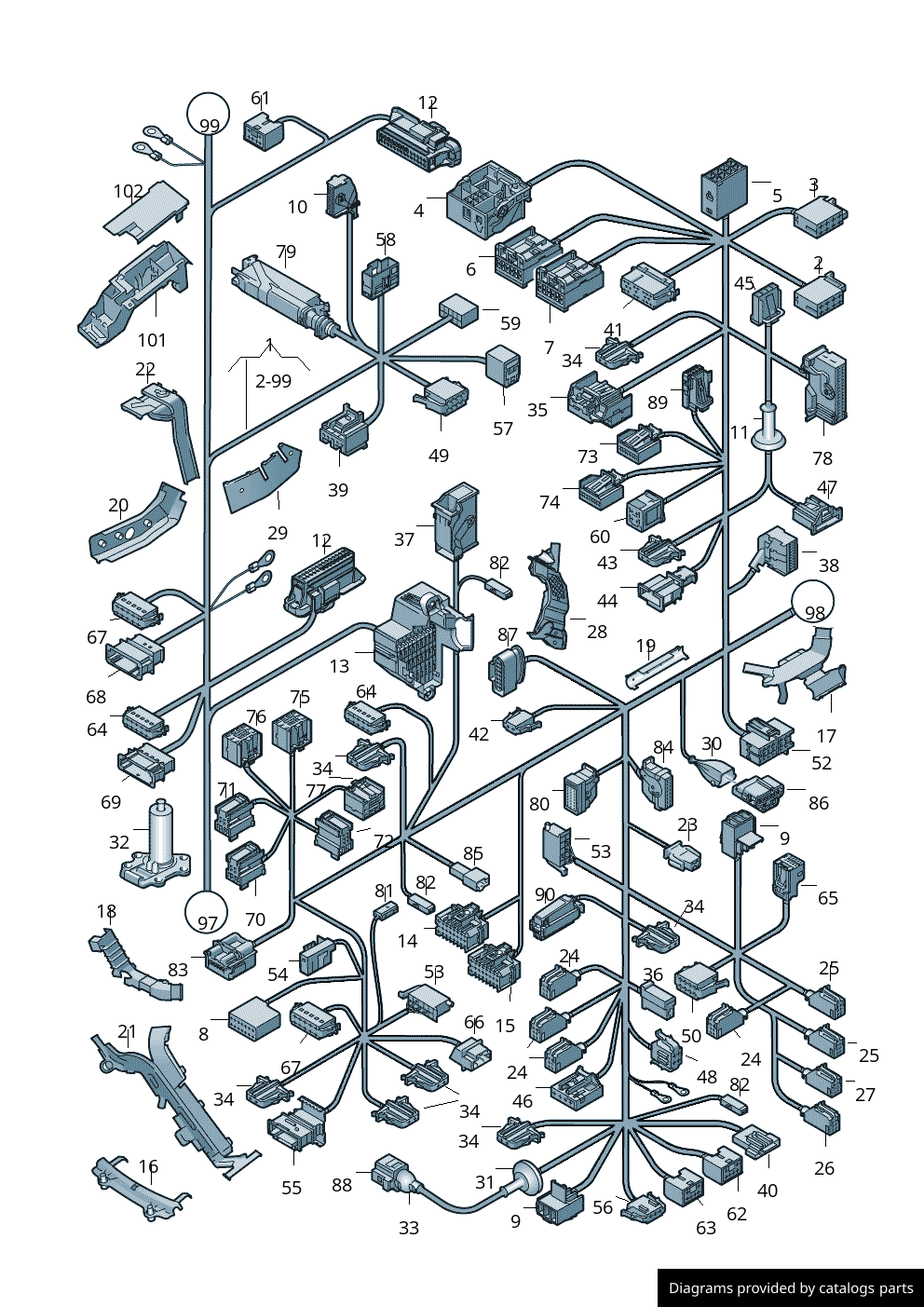

| No | Part code | Price | Title | Note | Req. quant. | Model |
| | | Central wiring set
area: | right
Dash panel | | |
| 1 | 3C0971051 | | Central wiring set
* The part number
* must be ordered
* manually
* by indicating
* the vehicle
* ID number
F >> 3C-6P021 584* | |
1 | |
| 1 | 3C0971051A | From £9,663.85 | Central wiring set
* The part number
* must be ordered
* manually
* by indicating
* the vehicle
* ID number
F 3C-6P021 585>> 3C-6P149 093* | |
1 | |
| 1 | 3C0971051B | | Central wiring set
* The part number
* must be ordered
* manually
* by indicating
* the vehicle
* ID number
F >> 3C-6E039 240* | |
1 | |
| 1 | 3C0971051C | | Central wiring set
* The part number
* must be ordered
* manually
* by indicating
* the vehicle
* ID number
F 3C-6E039 241>> 3C-6E161 997* | |
1 | |
| 1 | 3C0971051D | From £9,663.85 | Central wiring set
* The part number
* must be ordered
* manually
* by indicating
* the vehicle
* ID number
F 3C-6P149 094>>* | |
1 | |
| 1 | 3C0971051E | From £12,502.07 | Central wiring set
* The part number
* must be ordered
* manually
* by indicating
* the vehicle
* ID number
F 3C-6E161 998>>* | |
1 | |
| 1 | 3C0035320 | | Single wire
AUX-IN socket
use if required: | 2070MM
3B7 035 447 A
1C0 973 119 B
000 979 009
000 979 940 | 1
1
1
2
4 | |
| 1 | 3C0035320A | | Single wire
Navigation unit | 2863MM | 1 | |
| 1 | 3C0035320B | From £77.47 | Single wire
telephone
------------------------------
Flat contact housing
>>>>>
Flat contact housing | 2843MM
3B7 035 447 B
4E0 972 144 | 1 | |
| 1 | 3C0035320C | From £52.22 | Wiring set between radio
and CD changer or iPod
or USB stowage compartment
use if required:
** see current flow diagram * | 2070MM
000 979 941
000 979 137 | 1
2
1 | |
| | | Individual parts
area: | right
Dash panel | | |
| 2 | 357035447 | From £9.73 | Flat contact housing
radio | 8 pin
black | 1 | |
| 3 | 357035447A | From £9.73 | Flat contact housing
radio
for vehicles with navigation
system and tv reception | 8 pin
brown | 1 | |
| 4 | 3B7035444 | From £9.25 | Flat contact housing with
additional contact lock and
additional connector housing
mountings
radio | 8 pin
black | 1 | |
| 5 | 3B7035447 | From £9.94 | Flat contact housing with
contact locking mechanism
radio | 8 pin
brown | 1 | |
| 6 | 3B7035447A | From £9.75 | Flat contact housing with
contact locking mechanism
radio | 12 pin
blue | 1 | |
| 7 | 3B7035447B | From £9.75 | Flat contact housing with
contact locking mechanism
radio | 12 pin
green | 1 | |
| 8 | 3C0035131 | From £11.75 | Flat contact housing with
contact locking mechanism
Mounting for cellphone with
operating unit | 18 pin | 1 | |
| 9 | 1J0919321 | From £4.21 | Flat contact housing
Cigarette lighter | 3 pin
transparent | X | |
| 10 | 3B0919754 | From £14.11 | flat contact housing with
cap
interface
for vehicles with navigation
system | 26 pin
green/black | 1 | |
| 11 | 3C0927905B | From £0.49 | Grommet | 3/22 | 1 | |
| 12 | 1K0937722D | From £15.57 | Flat contact housing with
contact locking mechanism
a-pillar
b-pillar | 28 pin
Grey | X
1
1 | |
| 13 | 3C1941824 | From £16.29 | fuse holder
(passenger side) | lhd | 1 | |
| 13 | 3C2941823 | From £54.28 | fuse holder
(drivers side) | rhd | 1 | |
| 14 | 1J0962623B | From £11.30 | Flat contact housing with
contact locking mechanism
Amplifiers | 23 pin
green | 1 | |
| 15 | 1J0962624A | From £12.46 | Flat contact housing with
contact locking mechanism
Amplifiers | 24 pin
Grey | 1 | |
| 16 | 3C0971047 | From £2.03 | Cable guide | | 1 | |
| 17 | 3C0971445A | | Cable guide
tunnel
F >> 3C-7-125 000* | front | 1 | |
| 17 | 3C0971445C | From £7.03 | Cable guide
tunnel
F 3C-7-125 001>>* | front | 1 | |
| 18 | 1K0971446A | From £4.00 | Cable guide
tunnel
Amplifier for sound system | | 1 | |
| 19 | 1K0971615BP | From £7.22 | Cable guide | lhd | 1 | |
| 19 | 3C0972822A | | Cable holder
Aerial cable
for vehicles with central
locking system
F >> 3C-7-120 000* | | 1 | |
| 19 | 3C0972822C | From £3.00 | Cable holder
Aerial cable
for vehicles with central
locking system
F 3C-7-120 001>>* | | 1 | |
| 20 | 3C0971615K | | Cable guide
a-pillar
F >> 3C-6E039 240*
F >> 3C-6P021 584*
use if required: |
right
3C0 971 839 D | 1
1 | |
| 21 | 3C0971615Q | From £4.04 | Cable guide | | 1 | |
| 22 | 3C0971616B | | Cable guide
b-pillar |
right | 1 | |
| 22 | 3C0971262A | | Bracket
Cellphone connection set
use if required: |
1K0 937 545 M
8A0 971 845 AF | 1
1
1 | |
| 23 | 893971632 | From £4.63 | Flat contact housing
Loudspeaker
for models with two-way
radio
F >> 3C-6E039 240*
F >> 3C-6P021 584* | 2 pin | 1 | |
| 24 | 4D0971636 | From £9.17 | Flat contact housing
switch for inner light
Pushbutton for traction
control -TCS- | 6 pin
black | X
1
1 | |
| 24 | 4D0971636 | From £9.17 | Flat contact housing
switch for roof sign
switch for two-way radio
F >> 3C-6E039 240*
F >> 3C-6P021 584* | 6 pin
black | 1 | |
| 25 | 4D0971636A | | Flat contact housing
Pushbutton for parking aid
Push button
for vehicles with
autohold function | 6 pin
brown | X
1
1 | |
| 26 | 4D0971636B | | Flat contact housing
Pushbutton for
sun blind | 6 pin
red | 1 | |
| 27 | 4D0971636D | From £9.58 | Flat contact housing
Pushbutton for tyre
pressure warning | 6 pin
blue | X | |
| 28 | 1K1971822E | From £11.96 | Cable guide
dashboard | lhd
passenger side | 1 | |
| 28 | 1K2971822D | From £11.96 | Cable guide | rhd
passenger side | 1 | |
| 29 | 3C0971839D | | Cover
Cable guide
a-pillar
F >> 3C-6E039 240*
F >> 3C-6P021 584* |
3C0 971 615 K
right | 1 | |
| 30 | 1T0971909 | From £1.63 | Grommet
Flat contact housing
accelerator pedal sender | | 1 | |
| 31 | 1J0971913A | From £2.40 | Grommet | 39,7/4,5 | X | |
| 32 | 1K0971915E | From £11.89 | Grommet | right | 1 | |
| 33 | 3C0971921 | From £2.39 | Protective cap
Flat contact housing
for contact housing: |
2 pin
1J0 973 722 | X | |
| 34 | 1J0971972 | From £2.93 | flat connector housing
Aerial for access and
start authorisation (KESSY)
door contact switch
entry light
footwell light
Glove compartment
Temperature sensor
Control lamp for deact-
ivation of front passenger
airbag | 2 pin | X
1
X
X
1
1
1
1 | |
| 35 | 1K0971975 | From £9.94 | Flat contact housing with
contact locking mechanism
Control and display panel
for air-conditioning system
Climatronic
Control panel with control
unit for manually controlled
air conditioning | 20 pin | X
1
1 | |
| 36 | 161971989C | From £3.64 | Flat contact housing
Socket | 2 pin
12 V | 1 | |
| 37 | 4E0972144 | From £9.68 | Flat contact housing with
contact locking mechanism
Interface box with integr.
control unit for telephone | 54-pin | 1 | |
| 38 | 8E0972420 | From £7.69 | Flat contact housing with
contact locking mechanism
Diagnosis interface for
data bus (Gateway) | 20 pin
red | 1 | |
| 39 | 4E0972586 | From £5.02 | Flat contact housing
seat frame wiring harness
F >> 3C-7E167 593*
F >> 3C-7P126 693* | 3 pin
Yellow/violet | 1 | |
| 39 | 8J0972576 | From £5.22 | Flat connector housing with
contact locking mechanism
seat frame wiring harness
F 3C-7P126 694>>* | 3 pin
yellow | 1 | |
| 40 | 8E0972576 | From £4.92 | Flat contact housing
Mounting for cellphone
F >> 3C-6E039 240*
F >> 3C-6P021 584* | 8 pin
black | 1 | |
| 40 | 8E0972576 | From £4.92 | Flat contact housing
Adapter wiring set for
seat base
F 3C-6E039 241>>*
F 3C-6P021 585>>* | 8 pin
black | 1 | |
| 41 | 4B0972643 | From £6.50 | Flat contact housing with
contact locking mechanism
Radio navigation unit with
TV receiver (tuner) | 20 pin | 1 | |
| 42 | 1J0972923 | From £3.53 | Flat contact housing with
contact locking mechanism | 2 pin | 1 | |
| 43 | 3B0972702 | From £2.41 | Flat contact housing with
contact locking mechanism
CAN bus interface | 2 pin | 1 | |
| 44 | 3B0972712 | From £4.73 | Flat connector housing with
contact locking mechanism
CAN bus interface
F >> 3C-6P021 584* | 2 pin | 1 | |
| 45 | 1K0972704C | From £4.30 | Flat contact housing
Sun sensor | 4 pin
black | 1 | |
| 46 | 6Q0972705 | From £5.79 | Flat contact housing
Push button | 5 pin | 1 | |
| 47 | 6Q0972706 | From £6.85 | Flat contact housing with
contact locking mechanism
actuator motor for
fresh air flap | 6 pin
blue | 1 | |
| 48 | 1J0972722 | | Flat contact housing
for volume adjustment
F >> 3C-6E039 242*
F >> 3C-6P021 584* | 4 pin | 1 | |
| 49 | 1J0972724 | From £6.95 | Flat contact housing with
contact locking mechanism
coupling st. connector housing
Front passenger seat | 8 pin
black | 1 | PR:3L4 |
| 50 | 3B0972724 | From £6.40 | Flat contact housing with
contact locking mechanism
taxameter
F >> 3C-6P021 584* | 8 pin
black | 1 | |
| 52 | 3C0972725 | From £6.47 | Flat contact housing with
contact locking mechanism
Steering column lock | 10 pin | 1 | |
| 53 | 6Q0972726 | From £8.55 | Flat contact housing with
contact locking mechanism
CD player | 12 pin | X | |
| 54 | 8E0972112 | From £6.95 | Flat contact housing with
contact locking mechanism
DVD-player | 12 pin
black | 1 | |
| 54 | 7M3972726B | From £10.74 | flat contact housing with
cap
Control unit for automatic
headlight range control | white | 1 | |
| 55 | 6Q0972736 | From £8.55 | Flat contact housing with
contact locking mechanism
CD changers | 12 pin
black | 1 | |
| 56 | 1J0972752 | From £4.63 | Flat contact housing
multi-function indicator | 2 pin | X | |
| 56 | 1J0972753 | From £4.63 | Flat contact housing
For vehicles with
inverter | 3 pin | 1 | |
| 57 | 3D0972762 | From £4.92 | flat connector housing
Belt latch with warning
contact | 2 pin
yellow | 1 | |
| 58 | 7L0972762 | From £6.40 | Flat contact housing with
contact locking mechanism
coupling st. connector housing
Front passenger seat | 10 pin
black | 1 | |
| 59 | 1K0972766 | From £7.10 | Flat contact housing with
contact locking mechanism
coupling st. connector housing
Front passenger seat | 10 pin
black | 1 | |
| 59 | 1K0972766A | From £7.22 | Flat contact housing with
contact locking mechanism
seat frame wiring harness | 10 pin
black | 1 | |
| 60 | 1K0972772 | From £6.95 | Flat contact housing with
contact locking mechanism
emergency light switch | 4 pin
black | 1 | |
| 61 | 6Q0972773 | From £5.70 | Flat contact housing with
contact locking mechanism
three-point inertia reel
seat belt with belt tensioner
and belt pressure limiter
(passenger side) | 6 pin
violet | 1 | |
| 62 | 6Q0972773A | From £5.79 | Flat contact housing with
contact locking mechanism
Switch for seat heating | 6 pin
brown
right | 1 | |
| 63 | 6Q0972773F | From £5.70 | Flat contact housing with
contact locking mechanism
Switch for seat heating | 6 pin
green
left | 1 | |
| 64 | 1J0972775 | From £6.95 | Flat contact housing with
contact locking mechanism
wiring harness for blower | 10 pin | 1
1 | |
| 64 | 1J0972775 | From £6.95 | Flat contact housing with
contact locking mechanism
Test socket
F >> 3C-6P021 584* | 10 pin | 1 | |
| 65 | 1K0972776 | From £5.70 | Flat contact housing with
contact locking mechanism
selector lever | 10 pin
black | 1 |
automatic |
| 66 | 7L0972776 | From £5.02 | Flat contact housing
Switch
for models with the
possibility of deactivating
the front passenger airbag | 6 pin | 1 | |
| 67 | 6Q0972777 | From £9.25 | Flat contact housing with
contact locking mechanism
Test socket
F >> 3C-6P021 584* | 17-pin | 1 | |
| 67 | 6Q0972777 | From £9.25 | Flat contact housing with
contact locking mechanism
For radio installation instead
of glove compartment | 17-pin | 1 | |
| 68 | 6Q0972778 | From £9.25 | Flat contact housing with
contact locking mechanism
Test socket
F >> 3C-6P021 584* | 27 POLIG | 1 | |
| 69 | 1J0972785 | From £7.69 | Flat contact housing with
contact locking mechanism
Test socket
F >> 3C-6P021 584* | 10 pin | 1 | |
| 70 | 1K0972923 | From £4.30 | Flat contact housing with
contact locking mechanism
Central control unit for
convenience system | 6 pin
black | 1 | |
| 71 | 1K0972923A | From £4.30 | Flat contact housing with
contact locking mechanism
Central control unit for
convenience system | 6 pin
brown | 1 | |
| 72 | 1K0972924 | From £5.02 | Flat contact housing with
contact locking mechanism
Central control unit for
convenience system | 8 pin
black | 1 | |
| 73 | 1K0972928 | From £9.25 | Flat contact housing with
contact locking mechanism
Ignition/starter switch | 16 pin
black | 1 | |
| 74 | 1K0972928A | From £9.25 | Flat contact housing
Ignition/starter switch | 16 pin
brown | 1 | |
| 75 | 1K0972930 | From £1.90 | Flat connector housing with
contact locking mechanism
Central control unit for
convenience system | 18 pin
black | 1 | |
| 76 | 1K0972930A | From £1.90 | Flat connector housing with
contact locking mechanism
Central control unit for
convenience system | 18 pin
brown | 1 | |
| 77 | 1K0972930B | From £1.92 | Flat connector housing with
contact locking mechanism
Central control unit for
convenience system | 18 pin
red | 1 | |
| 78 | 1J0972977G | From £15.26 | flat contact housing with
cap
cable output:
Radio navigation unit with
TV receiver (tuner) | 32 pin
Grey
Straight | 1 | |
| 78 | 3C0972977 | From £10.19 | flat contact housing with
cap
cable output:
Radio navigation unit with
TV receiver (tuner) | 32 pin
Grey
side | 1 | |
| 79 | 4B0973083A | From £76.86 | flat contact housing with
gasket
Control unit
F >> 3C-6P021 584* | 88-pin | 1 | |
| 80 | 1K0973100 | From £19.62 | flat connector housing
Control unit for driver and
front passenger airbag | 75 POLIG
yellow | 1 | |
| 81 | 3B0973115A | From £3.61 | Flat contact housing
Glove compartment | 2 pin | 1 | |
| 82 | 1C0973119B | From £4.79 | Flat contact housing
foot operated parking brake
Switch for glove box lid
light
AUX-IN socket
switch-over box for aerial
amplifier (diversity) | 3 pin | X
1
1
1
1 | |
| 82 | 1J0973119 | From £4.63 | Flat contact housing with
contact locking mechanism
Coupling element
microphone
F >> 3C-6P021 584* | 2 pin | 1 | |
| 82 | 1J0973119 | From £4.63 | Flat contact housing with
contact locking mechanism
Glove compartment light
ashtray light
Aerial for access and
start authorisation (KESSY)
Control unit for aerial
selection (diversity) | 2 pin
rear | X
1
1
1
1 | |
| 83 | 4E0973205 | From £6.95 | Flat contact housing with
contact locking mechanism
Airbag unit
(passenger side) | 5 pin
Yellow/violet | 1 | |
| 83 | 4E0972586 | From £5.02 | Flat contact housing
Airbag unit
(passenger side)
F 3C-7-120 001* | 3 pin
Yellow/violet | 1 | |
| 83 | 4E0972586 | From £5.02 | Flat contact housing
seat frame wiring harness
F >> 3C-7E167 593*
F >> 3C-7P126 693* | 3 pin
Yellow/violet | 1 | |
| 83 | 8J0972576 | From £5.22 | Flat connector housing with
contact locking mechanism
seat frame wiring harness
F 3C-7P126 694>>* | 3 pin
yellow | 1 | |
| 84 | 6Q0973206H | From £24.14 | flat connector housing
Control unit for airbag | 50-pin
red | 1 | |
| 85 | 1J0973332 | From £4.63 | Flat contact housing | 2 pin | 1 | |
| 86 | 1K0973706 | | Flat contact housing with
contact locking mechanism
accelerator pedal sender | 6 pin
black | 1 | |
| 87 | 6X0973717 | From £9.34 | Flat contact housing with
contact locking mechanism | 14 pin
black | 1 | |
| 88 | 1J0973722 | From £11.72 | Flat contact housing with
contact locking mechanism
Servomotor for parking
brake 'EPB'
>> 3C-7-120 000*
use if required: | 2 pin
black
3C0 971 921 | 1 | |
| 88 | 1J0973722A | From £10.51 | Flat contact housing with
contact locking mechanism
Servomotor for parking
brake 'EPB'
F 3C-7-120 001>>*
use if required: | 2 pin
black
3C0 971 921 | 1 | |
| 89 | 8K0973754A | From £5.06 | Flat contact housing
Mounting for cellphone with
operating unit | 4 pin
brown | 1 | |
| 90 | 3C0973763A | From £34.65 | flat contact housing with
cap
slide valve
Control unit for electro-
mechanical parking brake | 30 pin
right | 1 | |
| 97 | | | see illustration: | 971-082 | | |
| 98 | | | see illustration: | 971-083 | | |
| 99 | | | see illustration: | 972-002 | | |
| | | single parts whitch are not
included with the parts supp-
lied with the wiring harness
area: | right
Dash panel | | |
| 101 | 3C0937546 | | bracket for connector housing
flat connector housing
for seat:
F >> 3C-7-120 000* |
right front | 1 | |
| 101 | 3C0937546A | | bracket for connector housing
coupling st. connector housing
for seat:
F 3C-7-120 001>>* |
right front | 1 | |
| 102 | 1K0971981A | | End cap | right | 1 | |
| 1K0971981A 82V | From £6.10 | Titan black | right | | |
| 1K0971981A 9B9 | | Satin black | | | |
There are no custom taxes for European and United Kingdom customers
