No | Part code | Price | Title | Note | Req. quant. | Model |

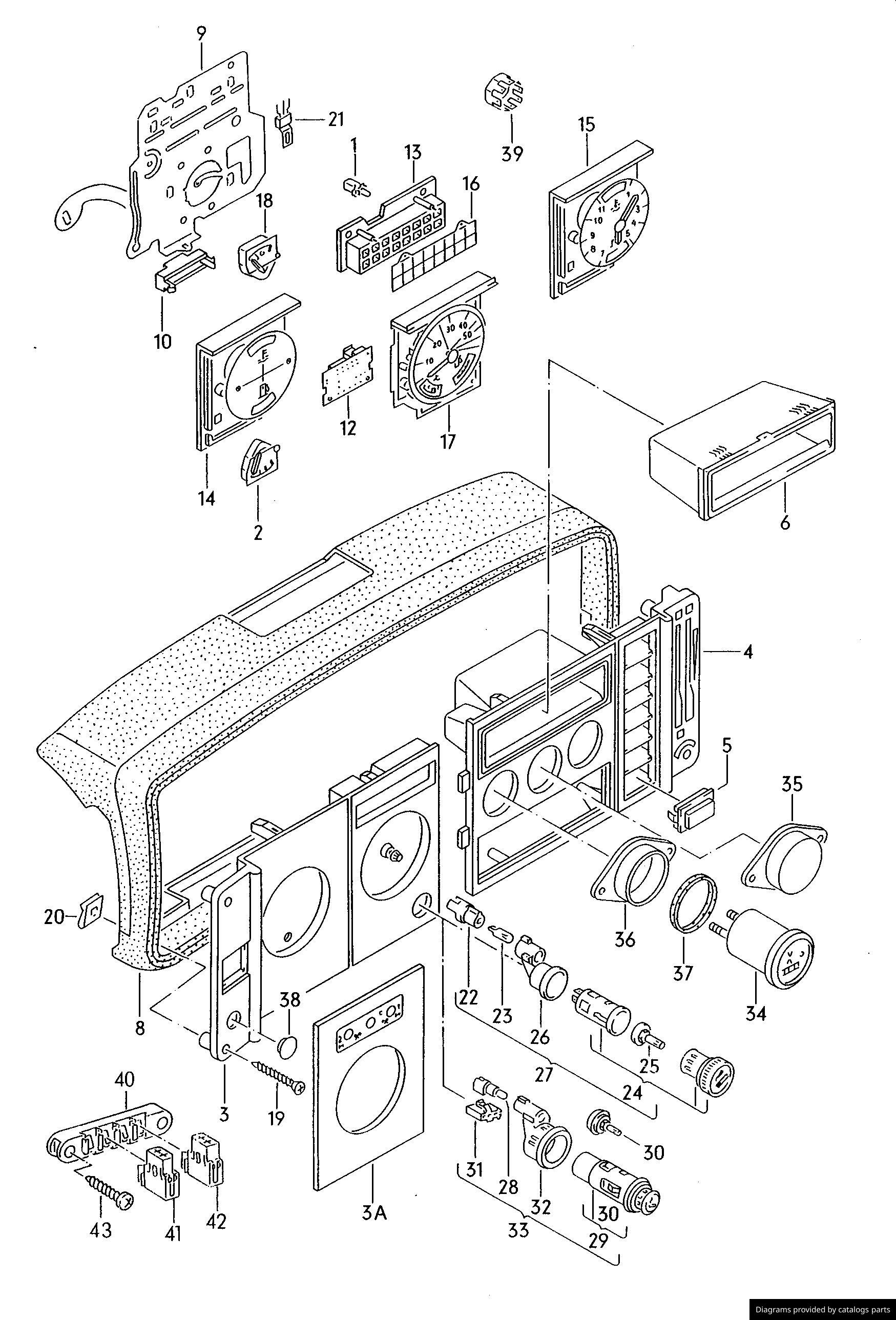

Fuel gauge temperature gauge Instrument housing Conductor foil Analogue clock | ||||||
1 | 431919040 | bulb with black base | 12V1,2W | 1 | ||
2 | 281919045 | Fuel gauge | 1 | |||
3 | 281919053L | Instrument housing for vehicles with headlight range adjustment use if required: | lhd 281 957 087 | 1 1 | ||
3 | 281919053M | Instrument housing for models with revolution counter also use: | lhd 281 957 087 | 1 1 | ||
3 | 281919053M | Instrument housing for models with revolution counter for vehicles with headlight range adjustment | lhd | 1 | ||
3 | 281919053N | Instrument housing for models with analogue clock for vehicles with headlight range adjustment use if required: | lhd 281 957 087 | 1 1 | ||
3 | 282919053L | Instrument housing for vehicles with headlight range adjustment use if required: | rhd 281 957 087 | 1 1 | ||
3 | 282919053M | Instrument housing for models with revolution counter for vehicles with headlight range adjustment use if required: | rhd 281 957 087 | 1 1 | ||
3 | 282919053N | Instrument housing for models with analogue clock for vehicles with headlight range adjustment use if required: | rhd 281 957 087 | 1 1 | ||
3 | 281919055F | Instrument housing for tachograph for vehicles with headlight range adjustment use if required: | lhd 281 957 087 | 1 1 | ||
3 | 282919055B | Instrument housing for tachograph for vehicles with headlight range adjustment use if required: | rhd 281 919 087 | 1 1 | ||
3 | 690957033 | trim for tachograph | 1 | |||
690957033 01C | Satin black | |||||
4 | 281919054 | trim for fresh air and heater controls | lhd | 1 | ||
4 | 282919054 | trim for fresh air and heater controls | rhd | 1 | ||
321919039 | Bulb holder illumination for fresh air controls | 1 | ||||
N 0177512 | From £1.44 | bulb illumination for fresh air controls | W5/1,2W12V1,2W | 1 | ||
5 | 861957087 | Dummy cover | X | |||
6 | 321857233B | Stowage box | 1 | |||
321857233B 01C | Satin black | |||||
8 | 281919056A | frame for instrument housing | 1 | |||
9 | 281919059N | Conductor foil | lhd | 1 | ||
9 | 281919059M | Conductor foil for models with revolution counter | lhd | 1 | ||
9 | 282919059J | Conductor foil | rhd | 1 | ||
9 | 282919059H | Conductor foil for models with revolution counter | rhd | 1 | ||
10 | 447919060 | Binder | 8-pin | 1 | ||
10 | 690919060 | Binder | 14 point | 1 | ||
12 | 281919064 | Control unit for oil pressure control | lhd | 1 | DIGIFANT, carburetor engine | |
12 | 281919064A | Control unit for oil pressure control | lhd | 1 | diesel eng. | |
12 | 282919064 | Control unit for oil pressure control | rhd | 1 | DIGIFANT, carburetor engine | |
12 | 282919064A | Control unit for oil pressure control | rhd | 1 | diesel eng. | |
13 | 281919077A | retainer for bulb holders | lhd | 1 | ||
13 | 282919077 | retainer for bulb holders | rhd | 1 | ||
14 | 281919078A | Trim with aperture for fuel gauge and temp- erature gauge | lhd | 1 | ||
14 | 282919078A | Trim with aperture for fuel gauge and temp- erature gauge | rhd | 1 | ||
15 | 281919201C | clock with temperature and fuel gauges | lhd | 1 | ||
15 | 282919201A | clock with temperature and fuel gauges | rhd | 1 | ||
16 | 281919249B | Symbol indicator for control lamps | lhd | 1 | ||
16 | 282919249B | Symbol indicator for control lamps | rhd | 1 | ||
17 | 281919253B | revolution counter with temperature and fuel gauge | lhd | 1 | DIGIFANT, carburetor engine | |
17 | 281919253C | revolution counter with temperature and fuel gauge | lhd | 1 | diesel eng. | |
17 | 282919253B | revolution counter with temperature and fuel gauge | rhd | 1 | DIGIFANT, carburetor engine | |
17 | 282919253C | revolution counter with temperature and fuel gauge | rhd | 1 | diesel eng. | |
18 | 281919511A | temperature gauge | 1 | diesel eng. | ||
18 | 281919511B | temperature gauge | 1 | |||
19 | N 0441001 | panel screw | 4,2X45 | 4 | ||
20 | N 0154227 | From £0.36 | Speed nut | 4,2X17X11,3 | 4 | |
21 | 171919803 | Voltage regulator | 1 | |||
Cigarette lighter | ||||||
28 | 6K0919243 | From £2.93 | Bulb carrier with bulb | SCHOELLER | 1 | |
30 | 191919305B | From £21.01 | Cigarette lighter | 1 | ||
31 | 191919321 | From £5.15 | Flat contact housing Cigarette lighter | 1 | ||
32 | 1H0919343 | retaining sleeve for cigarette lighter also use: | 6K0 919 243 | 1 1 | ||
operating hour meter Analogue clock | ||||||
34 | 690919204A | operating hour meter | 1 | |||
35 | 281919221B | Dummy cover | 1 | |||
36 | 281919348 | flange | 1 | |||
37 | 281919350 | Damping ring | 1 | |||
38 | 281925087 | Cover cap for dash panel opening idling control cable | 1 | |||
281925087 01C | Satin black | |||||
39 | 321971519A | ground connector | 6,3 8 pin | 1 | ||
40 | 443972559 | retaining strip for diagnostic plug | 1 | |||
41 | 443972577E | From £5.87 | Flat contact housing with contact locking mechanism | 2 pin white | X | |
42 | 443972580 | Flat contact housing with contact locking mechanism | 2 pin | X | ||
43 | N 0139734 | From £0.28 | oval head panel screw | 5,5X13 | 2 |
