No | Part code | Title | Note | Required quantity | Model | Price |

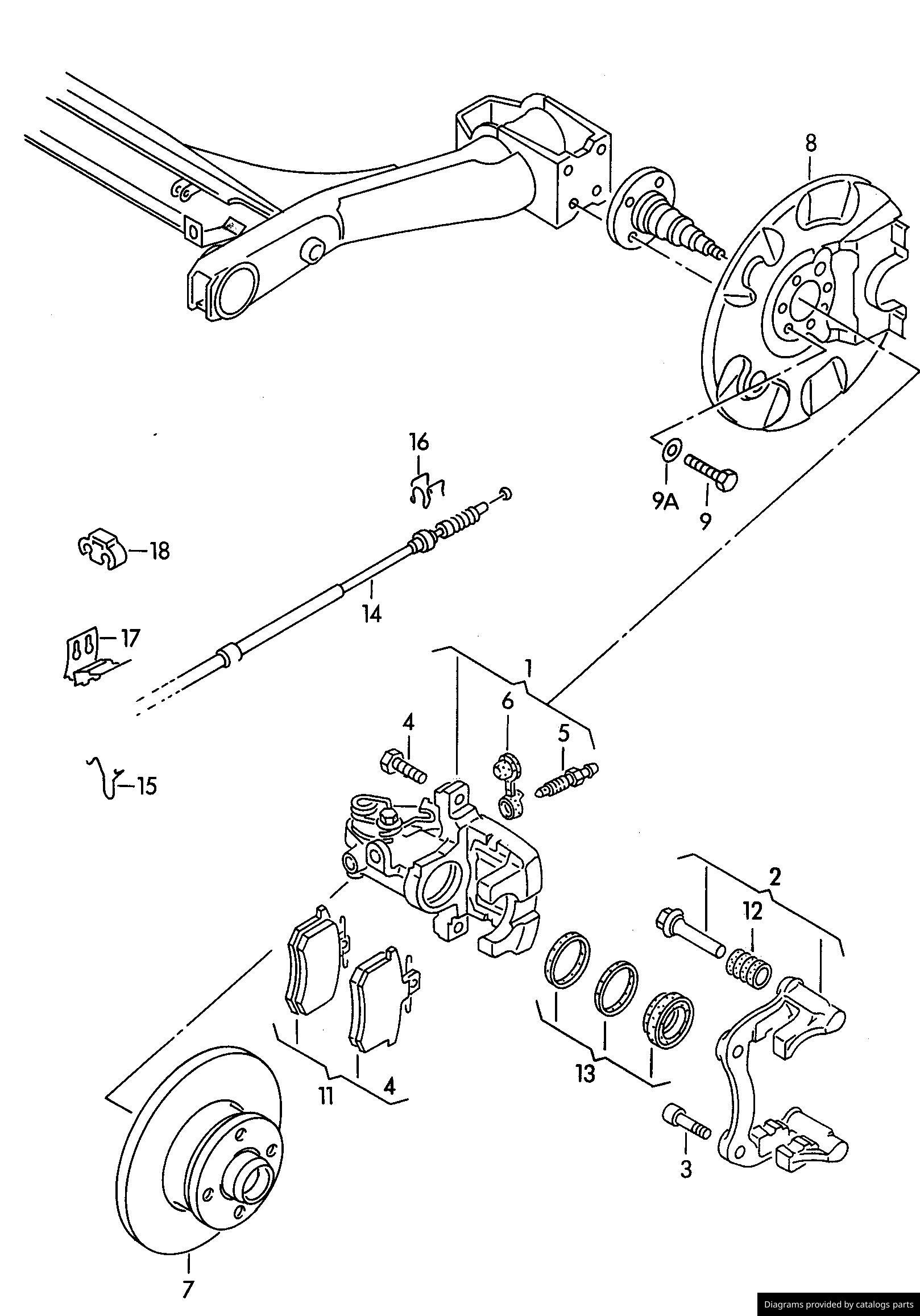

Floating caliper brake Brake caliper housing calliper carrier Brake disc brake cable | 226X10MM rear 1.8/2.0Ltr. | KR,PL,2E,ABF | ||||
1 | 535615423 X | Brake caliper housing F >> 1L-ZD328 000 | left | 1 | KR,PL,2E | |
1 | 1H0615423DX | Brake caliper housing F 1L-ZD328 001>> | left | 1 1 | ABF 2E | |
1 | 535615424 X | Brake caliper housing F >> 1L-ZD328 000 | right | 1 | KR,PL,2E | |
1 | 1H0615424DX | Brake caliper housing F 1L-ZD328 001>> | right | 1 1 | ABF 2E | |
535698680 X | 1 set: brake caliper housing F >> 1L-ZD328 000 | rear LUCAS | 1 | From £596.48 | ||
2 | 1H0615425 | brake carrier with pad retaining pin F 1L-ZD328 001>> | left | 1 1 | ABF KR,PL,2E | |
2 | 1H0615426 | brake carrier with pad retaining pin F 1L-ZD328 001>> | right | 1 1 | ABF KR,PL,2E | From £72.14 |
3 | N 0199123 | Socket head bolt with hexagon socket head F >> 1L-TR000 000 | M10X1,25X20 | 4 | From £2.53 | |
3 | N 90729401 | Socket head bolt with hexagon socket head F 1L-TR000 001>> | M10X1,25X21 | 4 | From £3.51 | |
4 | 321615141 | bolt, hexagon head self-locking | M8X21 | 4 | ||
5 | 357615273 | Breather valve | M10X1 | 2 | From £7.90 | |
6 | 211611483 | dust cap | 2 | From £2.94 | ||
7 | 357615601 | Brake disc | 226X10 4/100 | 2 | KR,PL,2E | |
7 | 357615601B | Brake disc | 226X10 5/100 | 2 | ABF | From £33.88 |
8 | 191615611D | Cover plate for brake disc | left | 1 | From £26.64 | |
8 | 191615612B | Cover plate for brake disc | right | 1 | From £26.64 | |
9 | N 90758902 | hexagon head bolt (combi) | M10X32 | 8 | From £1.22 | |
9 | 321501119A | Belleville spring | B10 | 8 | From £0.64 | |
11 | 1H0698451H | 1 set of brake pads for disk brake | rear | 1 | KR,PL,2E | From £43.86 |
11 | 1H0698451G | 1 set of brake pads for disk brake | rear | 1 1 | ABF 2E | From £45.31 |
11 | JZW698451B | 1 set of brake pads for disk brake 'ECO' | rear | 1 | ABF | From £42.88 |
12 | 8E0698470B | 1 set protective sleeves for guide pins | TRW-GIRLING | 2 | From £23.03 | |
13 | 8D0698671 | Set of gaskets for brake caliper housing | 1 | |||
14 | 191609721F | brake cable F >> 1L-ZD328 000 | 1625MM | 2 | KR,PL,2E | From £52.39 |
14 | 1L0609721A | brake cable F 1L-ZD328 001>> F >> 1L-TR000 000 | 1620MM | 2 2 | 2E ABF | From £21.02 |
14 | 1L0609721B | brake cable F 1L-TR000 001>> | 1620MM | 2 | ABF | |
15 | 191609639B | bracket for brake cable | 2 | KR,PL,2E | From £0.54 | |
15 | 1H0609745 | Bracket F >> 1L-TR000 000 | 2 | ABF | From £1.68 | |
15 | 1E0609745 | Bracket F 1L-TR000 001>> | left | 1 | ABF | |
15 | 1E0609746 | Bracket F 1L-TR000 001>> | right | 1 | ABF | |
16 | 857609745A | Spring clip F >> 1L-ZD328 000 | 2 | KR,PL,2E | From £1.97 | |
16 | 1H0609747 | Spring clip F 1L-ZD328 001>> | 2 2 | ABF 2E | From £4.17 | |
17 | 357609734A | Clip | 2 | From £2.33 | ||
17 | 1H0609734 | Clip F >> 1L-TR000 000 | 2 2 | KR,PL,2E ABF | From £2.56 | |
17 | 1H0609734C | Clip F 1L-TR000 001>> | 2 | ABF | ||
18 | 191609657 | Distance piece F >> 1L-TR042 095 | 2 | |||
18 | 1H0609657 | Distance piece F1L-TR042 096 | 2 | From £1.05 | ||
18 | 811611797 | Bracket | 2 | From £1.53 | ||
G 052150A2 | Lithium lubricating grease | 180G | X | From £39.81 | ||
G 000650 | Solid lubricant paste | 100G | X | From £56.84 |
